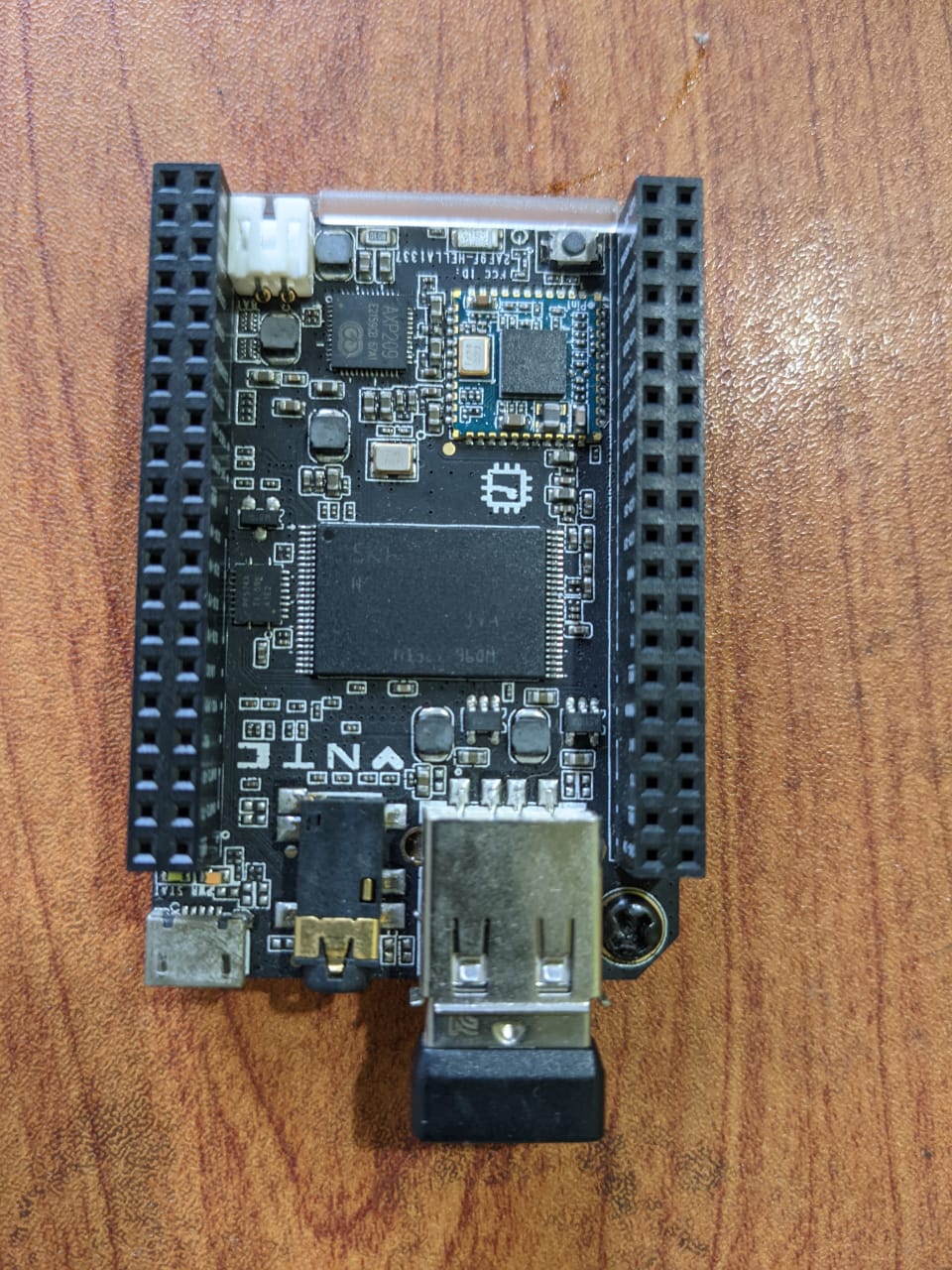

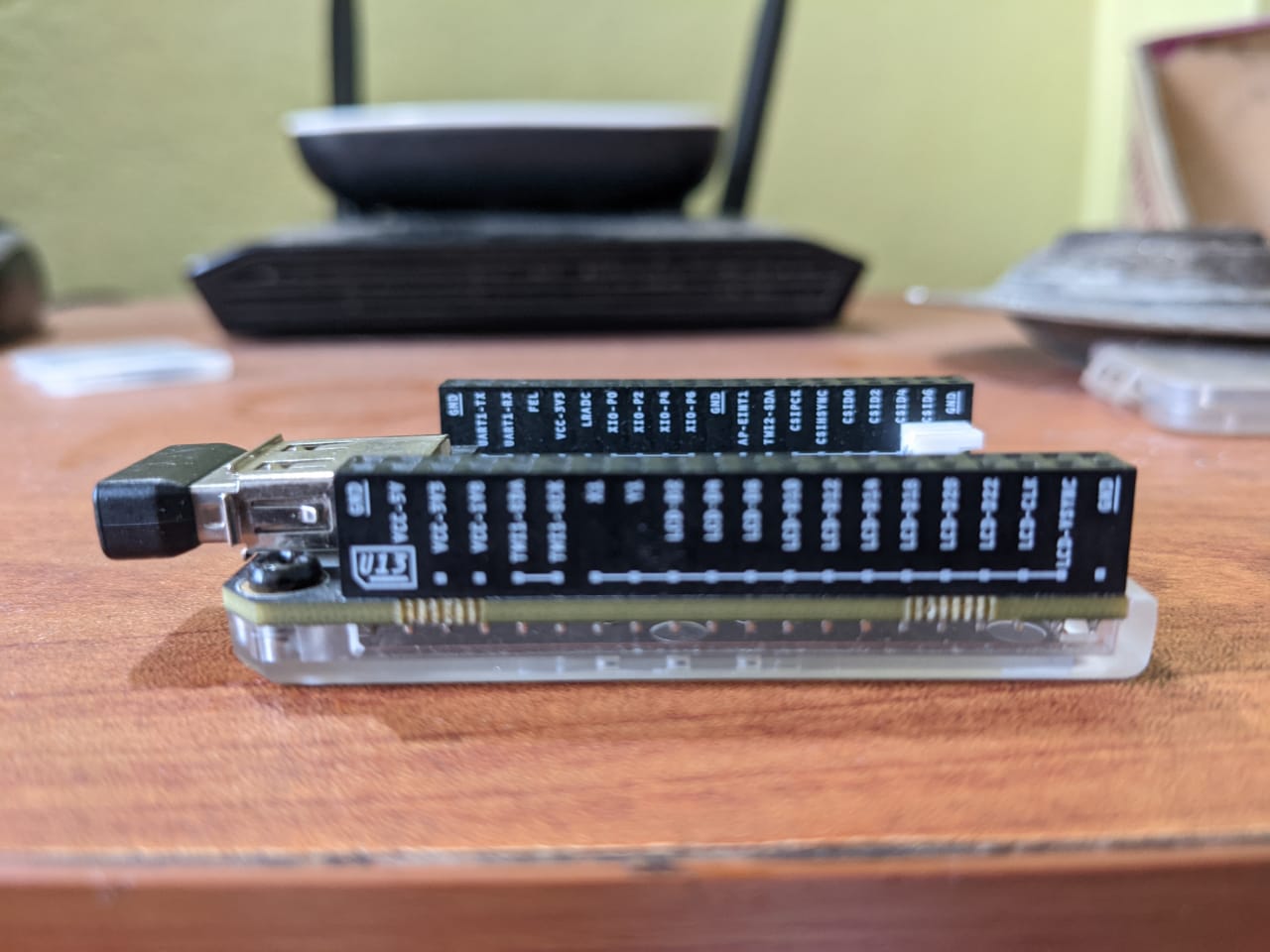

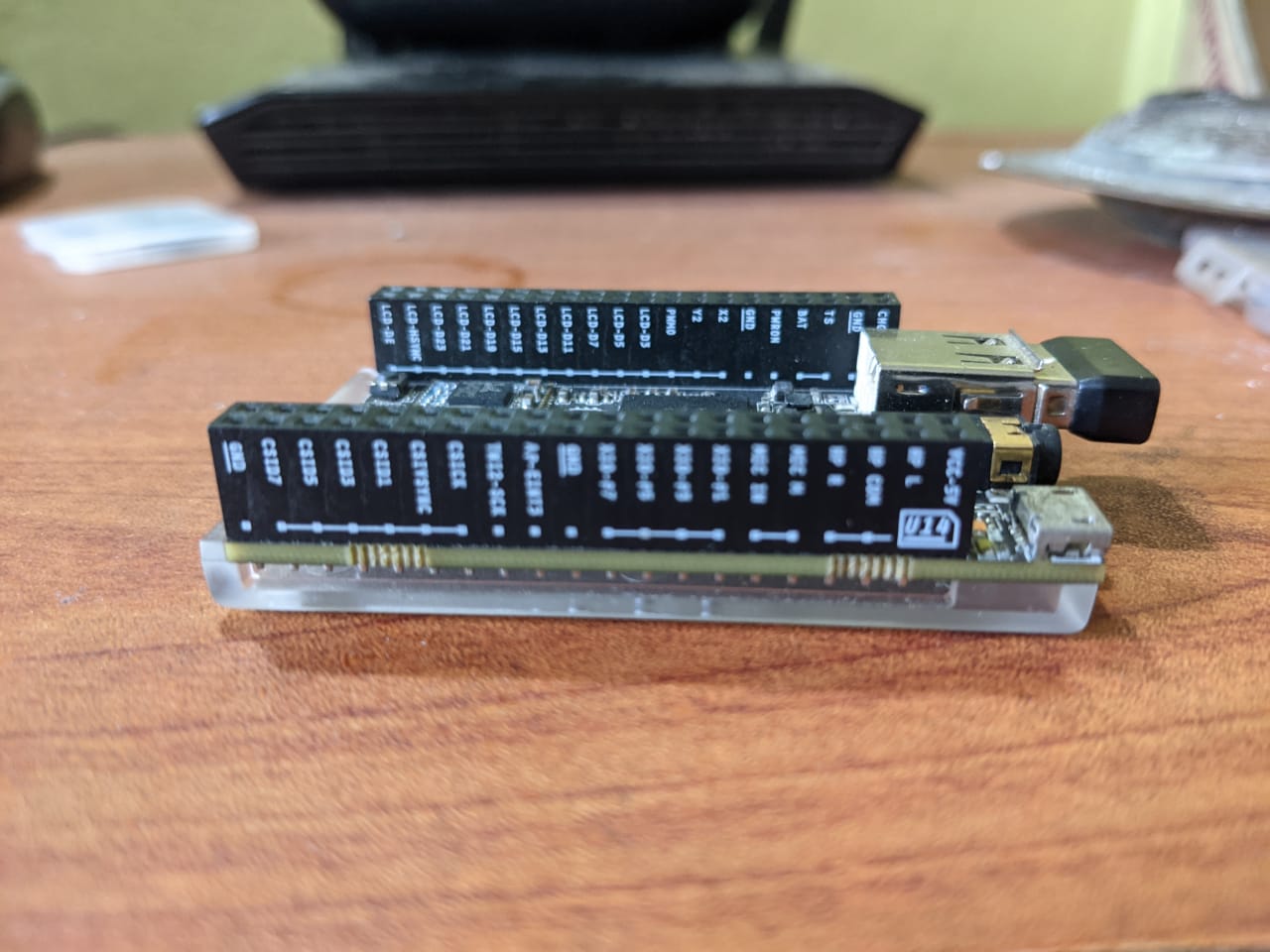

5 years back Radolfo M Garza gave me Teensy LC for his project. There was another things in his box it was a gift for me along with Teensy LC.
When I asked him what is it he told me that it is chip. Unfortunately it was not used by be as not required so it was just kept in proper packaging.
In the mean time 5 yeas past and I tried to find what it is ... after some effort I was surprised to know it is C-H-I-P V1.0 from Next Thing Co. the world smallest single board computer. Its discontinued right now.
https://en.wikipedia.org/wiki/CHIP_(computer)
 |
 |
 |

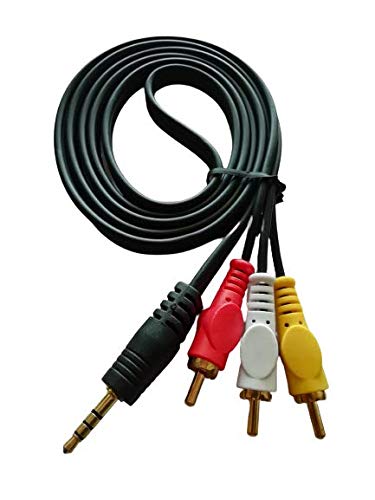

Now I tried to boot it using my LCD Tv and and Mobile charger. I used 3.5 mm Stereo Male to 3 RCA Male Heavy Quality Material Audio Video AV Cable.
But Nothing Happens.

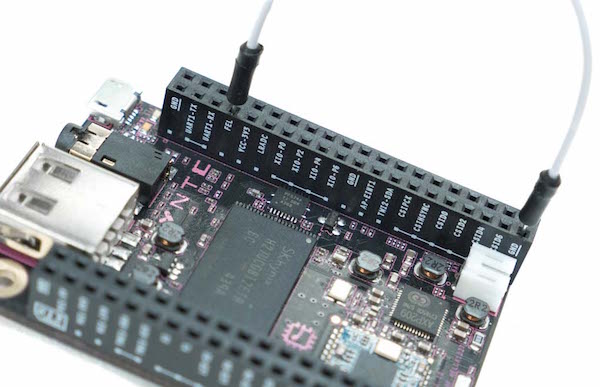

After some study I am glad to know its bricked. And I have to flashing the chip (Reinstall/unbrick/factory reset).
Now I started trying first with windows OS. got some tutorial video
https://www.youtube.com/watch?v=OD5NILIm24w
But where is chip-boot-repair.exe ?? There was no web flasher... felling very bad.
But i got some file in https://archive.org/details/C.h.i.p.FlashCollection Official Next Thing Co. site was down.Next Thing Co. was an Oakland, California based start-up company founded in 2013 by Dave Rauchwerk, Gustavo Huber and Thomas Deckert.

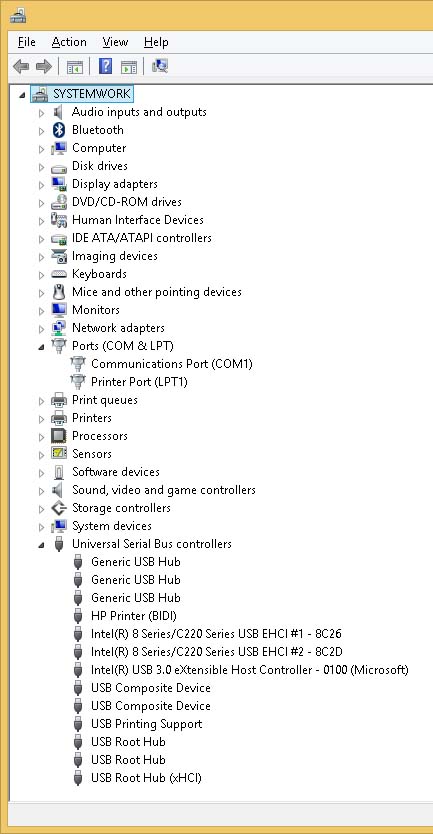

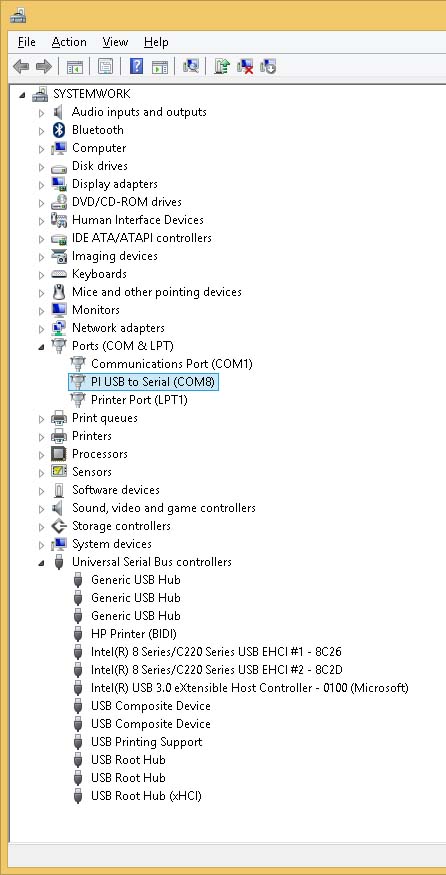

Finally I got a windows driver for Flashing https://archive.org/details/chip-flashing-mode-driver but I think it will works with web flasher so my work still pending. The file I downloaded is InstallDriver2.After installing it windows( Windows 8.1 build 9600) able to recognised C-H-I-P. The following image is after flashing but after installing above diver windows shows the device in flashing mode.
 |
 |
I am familiar with windows not unix or linux so in order to flash I need a linux system. Took my Raspberry PI

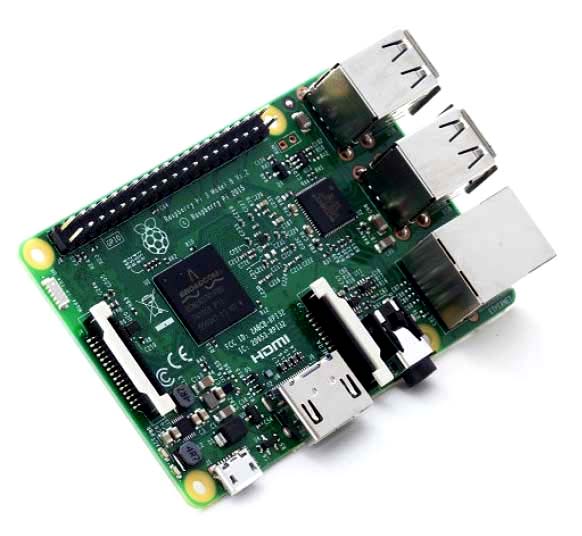

Raspberry PI Model B very low specs. Its over heat quickly and low power symbol shows always when I connect it to CAM. Unfortunately a project was running on Raspbery PI.I used Raspberry PI Imagers for installing

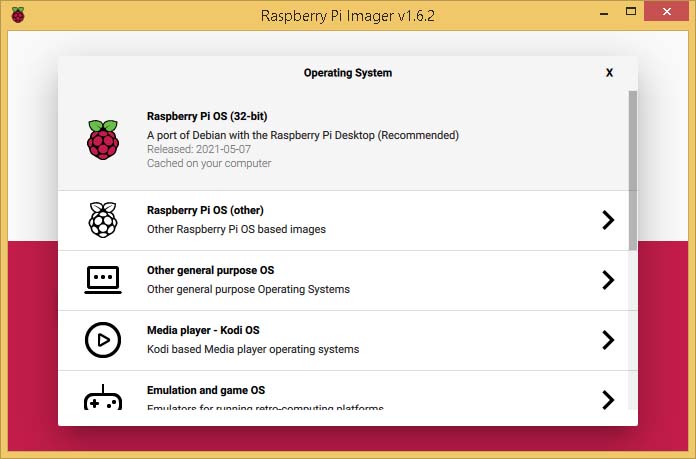

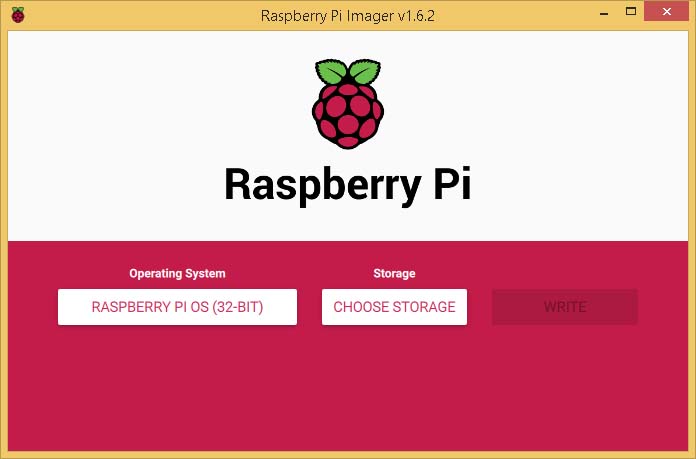

I have little knowledge on Raspberry PI. 3-4 years back in order to write an algorithm for Tara Gallagher I installed Open CV on it. Raspberry PI have OS Linux Debian Based so I think it will works but due to some error as mentioned before I leave it.
 |
 |
 |
But I got some resources for flashing.
https://www.youtube.com/watch?v=qAuqw4t_pO4&t=197s
Now I picked Ubuntu 20.4, Took Seagate 1 TB. external HDD. Plug it to my windows system and installed Ubuntu 20.4. Then finally able to flash.
In order to install Ubuntu 20.04.3 LTS (Focal Fossa) I took a 16 GB micro SD card Toshiba for image. And Seagate Expansion 1 TB External HDD - USB 3.0 for PC , Portable Hard Drive (STEA1000400). Now downloaded PowerISO8-x64 and rufus-3.15 for creating boot image ubuntu-20.04.3-desktop-amd64.iso. Installed Ubuntu 20.04.3 LTS from that image to external HDD after what GNU GRUB picked my Windows 8.1 Pro build 9600 and gave me option for dual booting.
Output of Flashing:
systemwork@ansuman-SYSTEMWORK:~/Flash-CHIP$ ./Flash.sh
# # #
#########
### ###
# {#} #
### '\######
# #
### ###
########
# # #
Welcome to the C.H.I.P Flasher Tool
Please enter your wanted flavour
++++++++++++++++++++++++++++++++++++++++++
enter p for pocketchip Image
enter s for the headless Server Image
enter g for the Desktop Image
enter b for the Buildroot Image
++++++++++++++++++++++++++++++++++++++++++
IMPORTANT INFO
If u suffer from Power Problems add a n
to your choice of flavour
Example: gn for the No-Limit Desktop Image
++++++++++++++++++++++++++++++++++++++++++
Other options
++++++++++++++++++++++++++++++++++++++++++
enter f for Force Clean
++++++++++++++++++++++++++++++++++++++++++
Then press enter please
g
Setting up environment
Hit:1 http://in.archive.ubuntu.com/ubuntu focal InRelease
Get:2 http://in.archive.ubuntu.com/ubuntu focal-updates InRelease [114
kB]
Get:3 http://in.archive.ubuntu.com/ubuntu focal-backports InRelease
[101 kB]
Get:4 http://in.archive.ubuntu.com/ubuntu focal-updates/main amd64
Packages [1,205 kB]
Get:5 http://security.ubuntu.com/ubuntu focal-security InRelease [114
kB]
Get:6 http://in.archive.ubuntu.com/ubuntu focal-updates/main i386
Packages [532 kB]
Get:7 http://in.archive.ubuntu.com/ubuntu focal-updates/main
Translation-en [258 kB]
Get:8 http://in.archive.ubuntu.com/ubuntu focal-updates/main amd64
DEP-11 Metadata [282 kB]
Ign:9 http://archive.ubuntu.com/ubuntu artful InRelease
Get:10 http://in.archive.ubuntu.com/ubuntu focal-updates/main amd64
c-n-f Metadata [14.1 kB]
Get:11 http://in.archive.ubuntu.com/ubuntu focal-updates/universe
amd64 Packages [855 kB]
Get:12 http://in.archive.ubuntu.com/ubuntu focal-updates/universe i386
Packages [632 kB]
Get:13 http://in.archive.ubuntu.com/ubuntu focal-updates/universe
Translation-en [181 kB]
Get:14 http://in.archive.ubuntu.com/ubuntu focal-updates/universe
amd64 DEP-11 Metadata [351 kB]
Err:15 http://archive.ubuntu.com/ubuntu artful Release
404 Not Found [IP: 91.189.88.152 80]
Get:16 http://in.archive.ubuntu.com/ubuntu focal-updates/universe
amd64 c-n-f Metadata [18.8 kB]
Get:17 http://in.archive.ubuntu.com/ubuntu focal-updates/multiverse
amd64 DEP-11 Metadata [944 B]
Get:18 http://in.archive.ubuntu.com/ubuntu focal-backports/universe
amd64 DEP-11 Metadata [10.3 kB]
Reading package lists... Done
E: The repository 'http://archive.ubuntu.com/ubuntu artful Release'
does not have a Release file.
N: Updating from such a repository can't be done securely, and is
therefore disabled by default.
N: See apt-secure(8) manpage for repository creation and user
configuration details.
Reading package lists... Done
Building dependency tree
Reading state information... Done
wget is already the newest version (1.20.3-1ubuntu1).
wget set to manually installed.
adb is already the newest version (1:8.1.0+r23-5ubuntu2).
adb set to manually installed.
android-tools-fastboot is already the newest version (1:8.1.0+r23-5ubuntu2).
fastboot is already the newest version (1:8.1.0+r23-5ubuntu2).
fastboot set to manually installed.
sunxi-tools is already the newest version (1.4.2+git20181114.6d598a-3).
curl is already the newest version (7.68.0-1ubuntu2.6).
git is already the newest version (1:2.25.1-1ubuntu3.1).
u-boot-tools is already the newest version (2021.01+dfsg-3ubuntu0~20.04.3).
0 upgraded, 0 newly installed, 0 to remove and 5 not upgraded.
Adding current user to dialout group
Adding current user to plugdev group
Adding udev rule for Allwinner device
SUBSYSTEM=="usb", ATTRS{idVendor}=="1f3a", ATTRS{idProduct}=="efe8",
GROUP="plugdev", MODE="0660" SYMLINK+="usb-chip"
SUBSYSTEM=="usb", ATTRS{idVendor}=="18d1", ATTRS{idProduct}=="1010",
GROUP="plugdev", MODE="0660" SYMLINK+="usb-chip-fastboot"
SUBSYSTEM=="usb", ATTRS{idVendor}=="1f3a", ATTRS{idProduct}=="1010",
GROUP="plugdev", MODE="0660" SYMLINK+="usb-chip-fastboot"
SUBSYSTEM=="usb", ATTRS{idVendor}=="067b", ATTRS{idProduct}=="2303",
GROUP="plugdev", MODE="0660" SYMLINK+="usb-serial-adapter"
Installing CHIP-tools
Cloning into 'CHIP-tools'...
remote: Enumerating objects: 554, done.
remote: Total 554 (delta 0), reused 0 (delta 0), pack-reused 554
Receiving objects: 100% (554/554), 129.52 KiB | 157.00 KiB/s, done.
Resolving deltas: 100% (324/324), done.
== Gui selected ==
== preparing images ==
== New image available ==
== Downloading.. ==
--2021-09-08 21:26:29--
http://chip.jfpossibilities.com/chip/images/stable/gui/149/spl-40000-1000-100.bin
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.239.1.46|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 278528 (272K) [application/octet-stream]
Saving to: ‘spl-40000-1000-100.bin’
spl-40000-1000-100.bin
100%[==============================================>] 272.00K
246KB/s in 1.1s
2021-09-08 21:26:31 (246 KB/s) - ‘spl-40000-1000-100.bin’ saved [278528/278528]
--2021-09-08 21:26:31--
http://chip.jfpossibilities.com/chip/images/stable/gui/149/spl-400000-4000-500.bin
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.239.1.46|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 4521984 (4.3M) [application/octet-stream]
Saving to: ‘spl-400000-4000-500.bin’
spl-400000-4000-500.bin
100%[==============================================>] 4.31M
1.55MB/s in 2.8s
2021-09-08 21:26:34 (1.55 MB/s) - ‘spl-400000-4000-500.bin’ saved
[4521984/4521984]
--2021-09-08 21:26:34--
http://chip.jfpossibilities.com/chip/images/stable/gui/149/spl-400000-4000-680.bin
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.239.1.46|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 4620288 (4.4M) [application/octet-stream]
Saving to: ‘spl-400000-4000-680.bin’
spl-400000-4000-680.bin
100%[==============================================>] 4.41M
470KB/s in 15s
2021-09-08 21:26:50 (295 KB/s) - ‘spl-400000-4000-680.bin’ saved
[4620288/4620288]
--2021-09-08 21:26:50--
http://chip.jfpossibilities.com/chip/images/stable/gui/149/sunxi-spl.bin
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.239.1.46|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 16384 (16K) [application/octet-stream]
Saving to: ‘sunxi-spl.bin’
sunxi-spl.bin
100%[==============================================>] 16.00K
57.0KB/s in 0.3s
2021-09-08 21:26:51 (57.0 KB/s) - ‘sunxi-spl.bin’ saved [16384/16384]
--2021-09-08 21:26:51--
http://chip.jfpossibilities.com/chip/images/stable/gui/149/u-boot-dtb.bin
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.239.1.46|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 625858 (611K) [application/octet-stream]
Saving to: ‘u-boot-dtb.bin’
u-boot-dtb.bin
100%[==============================================>] 611.19K
432KB/s in 1.4s
2021-09-08 21:26:53 (432 KB/s) - ‘u-boot-dtb.bin’ saved [625858/625858]
--2021-09-08 21:26:53--
http://chip.jfpossibilities.com/chip/images/stable/gui/149/uboot-40000.bin
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.239.1.46|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 786432 (768K) [application/octet-stream]
Saving to: ‘uboot-40000.bin’
uboot-40000.bin
100%[==============================================>] 768.00K
143KB/s in 5.4s
2021-09-08 21:26:59 (143 KB/s) - ‘uboot-40000.bin’ saved [786432/786432]
--2021-09-08 21:26:59--
http://chip.jfpossibilities.com/chip/images/stable/gui/149/uboot-400000.bin
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.239.1.46|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 4194304 (4.0M) [application/octet-stream]
Saving to: ‘uboot-400000.bin’
uboot-400000.bin
100%[==============================================>] 4.00M
342KB/s in 11s
2021-09-08 21:27:11 (364 KB/s) - ‘uboot-400000.bin’ saved [4194304/4194304]
== Staging for NAND probe ==
Image Name: detect NAND
Created: Wed Sep 8 21:27:11 2021
Image Type: ARM Linux Script (uncompressed)
Data Size: 97 Bytes = 0.09 KiB = 0.00 MiB
Load Address: 00000000
Entry Point: 00000000
Contents:
Image 0: 89 Bytes = 0.09 KiB = 0.00 MiB
waiting for fel...OK
waiting for fel.....OK
NAND detected:
nand_erasesize=400000
nand_oobsize=680
nand_writesize=4000
== Downloading new UBI, this will be cached for future flashes. ==
--2021-09-08 21:27:28--
http://chip.jfpossibilities.com/chip/images/stable/gui/149/chip-400000-4000-680.ubi.sparse
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.239.1.46|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 687865896 (656M)
Saving to: ‘chip-400000-4000-680.ubi.sparse’
chip-400000-4000-680.ubi.spa
100%[==============================================>] 656.00M
462KB/s in 33m 43s
2021-09-08 22:01:12 (332 KB/s) - ‘chip-400000-4000-680.ubi.sparse’
saved [687865896/687865896]
Image Name: flash gui
Created: Wed Sep 8 22:01:12 2021
Image Type: ARM Linux Script (uncompressed)
Data Size: 1784 Bytes = 1.74 KiB = 0.00 MiB
Load Address: 00000000
Entry Point: 00000000
Contents:
Image 0: 1776 Bytes = 1.73 KiB = 0.00 MiB
waiting for fel...[sudo] password for systemwork:
OK
waiting for fastboot.........................OK
target reported max download size of 33554432 bytes
sending sparse 'UBI' 1/24 (28672 KB)...
OKAY [ 2.013s]
writing 'UBI' 1/24...
OKAY [ 2.101s]
sending sparse 'UBI' 2/24 (28672 KB)...
OKAY [ 2.015s]
writing 'UBI' 2/24...
OKAY [ 5.571s]
sending sparse 'UBI' 3/24 (28672 KB)...
OKAY [ 2.005s]
writing 'UBI' 3/24...
OKAY [ 12.535s]
sending sparse 'UBI' 4/24 (28672 KB)...
OKAY [ 1.996s]
writing 'UBI' 4/24...
OKAY [ 12.535s]
sending sparse 'UBI' 5/24 (28672 KB)...
OKAY [ 1.953s]
writing 'UBI' 5/24...
OKAY [ 12.525s]
sending sparse 'UBI' 6/24 (28672 KB)...
OKAY [ 2.001s]
writing 'UBI' 6/24...
OKAY [ 12.537s]
sending sparse 'UBI' 7/24 (28672 KB)...
OKAY [ 1.997s]
writing 'UBI' 7/24...
OKAY [ 12.527s]
sending sparse 'UBI' 8/24 (28672 KB)...
OKAY [ 1.951s]
writing 'UBI' 8/24...
OKAY [ 12.539s]
sending sparse 'UBI' 9/24 (28672 KB)...
OKAY [ 1.992s]
writing 'UBI' 9/24...
OKAY [ 12.532s]
sending sparse 'UBI' 10/24 (28672 KB)...
OKAY [ 1.970s]
writing 'UBI' 10/24...
OKAY [ 12.525s]
sending sparse 'UBI' 11/24 (28672 KB)...
OKAY [ 1.997s]
writing 'UBI' 11/24...
OKAY [ 12.536s]
sending sparse 'UBI' 12/24 (28672 KB)...
OKAY [ 2.018s]
writing 'UBI' 12/24...
OKAY [ 12.537s]
sending sparse 'UBI' 13/24 (28672 KB)...
OKAY [ 2.012s]
writing 'UBI' 13/24...
OKAY [ 12.535s]
sending sparse 'UBI' 14/24 (28672 KB)...
OKAY [ 1.977s]
writing 'UBI' 14/24...
OKAY [ 12.531s]
sending sparse 'UBI' 15/24 (28672 KB)...
OKAY [ 1.973s]
writing 'UBI' 15/24...
OKAY [ 12.528s]
sending sparse 'UBI' 16/24 (28672 KB)...
OKAY [ 1.989s]
writing 'UBI' 16/24...
OKAY [ 12.527s]
sending sparse 'UBI' 17/24 (28672 KB)...
OKAY [ 2.008s]
writing 'UBI' 17/24...
OKAY [ 12.528s]
sending sparse 'UBI' 18/24 (28672 KB)...
OKAY [ 1.974s]
writing 'UBI' 18/24...
OKAY [ 12.525s]
sending sparse 'UBI' 19/24 (28672 KB)...
OKAY [ 2.013s]
writing 'UBI' 19/24...
OKAY [ 12.530s]
sending sparse 'UBI' 20/24 (28672 KB)...
OKAY [ 1.987s]
writing 'UBI' 20/24...
OKAY [ 12.532s]
sending sparse 'UBI' 21/24 (28672 KB)...
OKAY [ 1.974s]
writing 'UBI' 21/24...
OKAY [ 12.523s]
sending sparse 'UBI' 22/24 (28672 KB)...
OKAY [ 1.998s]
writing 'UBI' 22/24...
OKAY [ 12.532s]
sending sparse 'UBI' 23/24 (28672 KB)...
OKAY [ 2.002s]
writing 'UBI' 23/24...
OKAY [ 9.725s]
sending sparse 'UBI' 24/24 (12288 KB)...
OKAY [ 0.854s]
writing 'UBI' 24/24...
OKAY [ 2.809s]
finished. total time: 317.499s
resuming boot...
OKAY [ 0.000s]
finished. total time: 0.000s
FLASH VERIFICATION COMPLETE.
# # #
#########
### ###
# {#} #
### '%######
# #
### ###
########
# # #
CHIP is ready to roll!
Now after installing several things still faced problem then suddenly I got a blog post.
https://githubmemory.com/repo/Thore-Krug/Flash-CHIP/issues Which helps me to short out problem.
Steps for Flashing the chip (Reinstall/unbrick/factory reset) on OS Ubuntu 20.04.3 LTS (Focal Fossa)
FEL mode

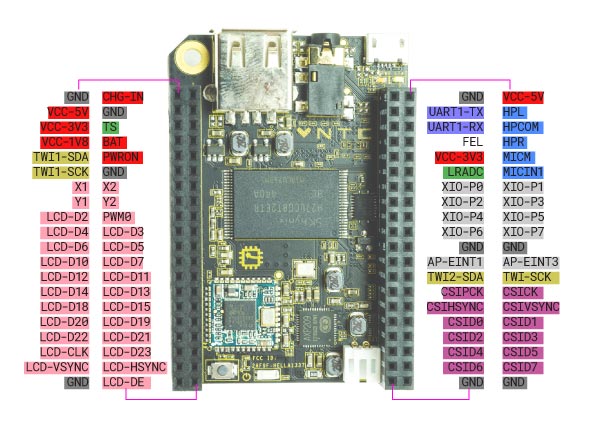

Here is a photo (which may be clearer than the animation in the web flasher) which shows where to place your jumper wire or paper clip:
 |
 |
 |
You have to connect FEL to GND through jumper before plugged with computer with cable.
----------------------------------------------------------------------
sudo apt update && sudo apt upgrade
sudo apt install -y build-essential git make libusb-1.0-0-dev pkg-config android-tools-fastboot
cd ~/Downloads
git clone --branch v1.4.1 https://github.com/linux-sunxi/sunxi-tools.git
cd ~/Downloads/sunxi-tools
make
sudo make install
sudo make install-misc
cd ~/Downloads
git clone https://github.com/Thore-Krug/Flash-CHIP
cd ~/Downloads/Flash-CHIP
sudo chmod +x Flash.sh
./Flash.sh
-------------------------------------------------------------------
And it works.
Now question is others complains about these steps as after following above steps they are unable to Flashing the chip (Reinstall/unbrick/factory reset) on OS Ubuntu 20.04.3 LTS (Focal Fossa).
So I documented those steps I followed before applying above steps.
systemwork@ansuman-SYSTEMWORK:~$ lsusb
Bus 002 Device 002: ID 8087:8000 Intel Corp.
Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 001 Device 002: ID 8087:8008 Intel Corp.
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 003 Device 004: ID 046d:c077 Logitech, Inc. M105 Optical Mouse
Bus 003 Device 009: ID 0461:4d6a Primax Electronics, Ltd
Bus 003 Device 007: ID 0a5c:4503 Broadcom Corp. Mouse (Boot Interface Subclass)
Bus 003 Device 005: ID 0a5c:4502 Broadcom Corp. Keyboard (Boot Interface Subclass)
Bus 003 Device 003: ID 0a5c:4500 Broadcom Corp. BCM2046B1 USB 2.0 Hub (part of BCM2046 Bluetooth)
Bus 003 Device 011: ID 1f3a:efe8 Onda (unverified) V972 tablet in flashing mode
Bus 003 Device 002: ID 046d:c31d Logitech, Inc. Media Keyboard K200
Bus 003 Device 008: ID 0bc2:2322 Seagate RSS LLC SRD0NF1 Expansion Portable (STEA)
Bus 003 Device 006: ID 2001:3319 D-Link Corp. Wireless N Nano USB Adapter
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
**It shows that CHIP is detected by computer. Each time I unplug and re-plug Bus003 remain same but Device11 become Device12 and so on.
Next command
systemwork@ansuman-SYSTEMWORK:~$ sudo apt-get update
Get:1 http://in.archive.ubuntu.com/ubuntu focal InRelease [265 kB]
Get:2 http://in.archive.ubuntu.com/ubuntu focal-updates InRelease [114 kB]
Get:3 http://in.archive.ubuntu.com/ubuntu focal-backports InRelease [101 kB]
Get:4 http://in.archive.ubuntu.com/ubuntu focal/main amd64 Packages [970 kB]
Get:5 http://security.ubuntu.com/ubuntu focal-security InRelease [114 kB]
Get:6 http://in.archive.ubuntu.com/ubuntu focal/main i386 Packages [718 kB]
Get:7 http://in.archive.ubuntu.com/ubuntu focal/main Translation-en [506 kB]
Get:8 http://in.archive.ubuntu.com/ubuntu focal/main amd64 DEP-11 Metadata [494 kB]
Get:9 http://in.archive.ubuntu.com/ubuntu focal/main DEP-11 48x48 Icons [98.4 kB]
Get:10 http://in.archive.ubuntu.com/ubuntu focal/main DEP-11 64x64 Icons [163 kB]
Get:11 http://in.archive.ubuntu.com/ubuntu focal/main DEP-11 64x64@2 Icons [15.8 kB]
Get:12 http://in.archive.ubuntu.com/ubuntu focal/main amd64 c-n-f Metadata [29.5 kB]
Get:13 http://in.archive.ubuntu.com/ubuntu focal/restricted i386 Packages [8,112 B]
Get:14 http://in.archive.ubuntu.com/ubuntu focal/restricted amd64 Packages [22.0 kB]
Get:15 http://in.archive.ubuntu.com/ubuntu focal/restricted Translation-en [6,212 B]
Get:16 http://in.archive.ubuntu.com/ubuntu focal/restricted amd64 c-n-f Metadata [392 B]
Get:17 http://in.archive.ubuntu.com/ubuntu focal/universe amd64 Packages [8,628 kB]
Get:18 http://in.archive.ubuntu.com/ubuntu focal/universe i386 Packages [4,642 kB]
Get:19 http://security.ubuntu.com/ubuntu focal-security/main i386 Packages [280 kB]
Get:20 http://in.archive.ubuntu.com/ubuntu focal/universe Translation-en [5,124 kB]
Get:21 http://in.archive.ubuntu.com/ubuntu focal/universe amd64 DEP-11 Metadata [3,603 kB]
Get:22 http://in.archive.ubuntu.com/ubuntu focal/universe DEP-11 48x48 Icons [3,016 kB]
Get:23 http://in.archive.ubuntu.com/ubuntu focal/universe DEP-11 64x64 Icons [7,794 kB]
Get:24 http://security.ubuntu.com/ubuntu focal-security/main amd64 Packages [860 kB]
Get:25 http://in.archive.ubuntu.com/ubuntu focal/universe DEP-11 64x64@2 Icons [44.3 kB]
Get:26 http://in.archive.ubuntu.com/ubuntu focal/universe amd64 c-n-f Metadata [265 kB]
Get:27 http://in.archive.ubuntu.com/ubuntu focal/multiverse i386 Packages [74.7 kB]
Get:28 http://in.archive.ubuntu.com/ubuntu focal/multiverse amd64 Packages [144 kB]
Get:29 http://in.archive.ubuntu.com/ubuntu focal/multiverse Translation-en [104 kB]
Get:30 http://in.archive.ubuntu.com/ubuntu focal/multiverse amd64 DEP-11 Metadata [48.4 kB]
Get:31 http://in.archive.ubuntu.com/ubuntu focal/multiverse DEP-11 48x48 Icons [23.1 kB]
Get:32 http://in.archive.ubuntu.com/ubuntu focal/multiverse DEP-11 64x64 Icons [192 kB]
Get:33 http://in.archive.ubuntu.com/ubuntu focal/multiverse DEP-11 64x64@2 Icons [214 B]
Get:34 http://in.archive.ubuntu.com/ubuntu focal/multiverse amd64 c-n-f Metadata [9,136 B]
Get:35 http://in.archive.ubuntu.com/ubuntu focal-updates/main amd64 Packages [1,204 kB]
Get:36 http://in.archive.ubuntu.com/ubuntu focal-updates/main i386 Packages [531 kB]
Get:37 http://in.archive.ubuntu.com/ubuntu focal-updates/main Translation-en [257 kB]
Get:38 http://in.archive.ubuntu.com/ubuntu focal-updates/main amd64 DEP-11 Metadata [283 kB]
Get:39 http://in.archive.ubuntu.com/ubuntu focal-updates/main DEP-11 48x48 Icons [60.5 kB]
Get:40 http://in.archive.ubuntu.com/ubuntu focal-updates/main DEP-11 64x64 Icons [95.0 kB]
Get:41 http://in.archive.ubuntu.com/ubuntu focal-updates/main DEP-11 64x64@2 Icons [29 B]
Get:42 http://in.archive.ubuntu.com/ubuntu focal-updates/main amd64 c-n-f Metadata [14.1 kB]
Get:43 http://in.archive.ubuntu.com/ubuntu focal-updates/restricted amd64 Packages [442 kB]
Get:44 http://in.archive.ubuntu.com/ubuntu focal-updates/restricted i386 Packages [19.3 kB]
Get:45 http://in.archive.ubuntu.com/ubuntu focal-updates/restricted Translation-en [63.3 kB]
Get:46 http://in.archive.ubuntu.com/ubuntu focal-updates/restricted amd64 c-n-f Metadata [500 B]
Get:47 http://in.archive.ubuntu.com/ubuntu focal-updates/universe amd64 Packages [854 kB]
Get:48 http://in.archive.ubuntu.com/ubuntu focal-updates/universe i386 Packages [631 kB]
Get:49 http://in.archive.ubuntu.com/ubuntu focal-updates/universe Translation-en [181 kB]
Get:50 http://in.archive.ubuntu.com/ubuntu focal-updates/universe amd64 DEP-11 Metadata [351 kB]
Get:51 http://in.archive.ubuntu.com/ubuntu focal-updates/universe DEP-11 48x48 Icons [214 kB]
Get:52 http://in.archive.ubuntu.com/ubuntu focal-updates/universe DEP-11 64x64 Icons [375 kB]
Get:53 http://in.archive.ubuntu.com/ubuntu focal-updates/universe DEP-11 64x64@2 Icons [29 B]
Get:54 http://in.archive.ubuntu.com/ubuntu focal-updates/universe amd64 c-n-f Metadata [18.8 kB]
Get:55 http://in.archive.ubuntu.com/ubuntu focal-updates/multiverse amd64 Packages [24.6 kB]
Get:56 http://in.archive.ubuntu.com/ubuntu focal-updates/multiverse i386 Packages [8,232 B]
Get:57 http://in.archive.ubuntu.com/ubuntu focal-updates/multiverse Translation-en [6,776 B]
Get:58 http://in.archive.ubuntu.com/ubuntu focal-updates/multiverse amd64 DEP-11 Metadata [940 B]
Get:59 http://in.archive.ubuntu.com/ubuntu focal-updates/multiverse DEP-11 48x48 Icons [1,865 B]
Get:60 http://in.archive.ubuntu.com/ubuntu focal-updates/multiverse DEP-11 64x64 Icons [2,498 B]
Get:61 http://in.archive.ubuntu.com/ubuntu focal-updates/multiverse DEP-11 64x64@2 Icons [29 B]
Get:62 http://in.archive.ubuntu.com/ubuntu focal-updates/multiverse amd64 c-n-f Metadata [620 B]
Get:63 http://in.archive.ubuntu.com/ubuntu focal-backports/main i386 Packages [2,568 B]
Get:64 http://in.archive.ubuntu.com/ubuntu focal-backports/main amd64 Packages [2,568 B]
Get:65 http://in.archive.ubuntu.com/ubuntu focal-backports/main Translation-en [1,120 B]
Get:66 http://in.archive.ubuntu.com/ubuntu focal-backports/main amd64 c-n-f Metadata [400 B]
Get:67 http://in.archive.ubuntu.com/ubuntu focal-backports/restricted amd64 c-n-f Metadata [116 B]
Get:68 http://in.archive.ubuntu.com/ubuntu focal-backports/universe amd64 Packages [5,812 B]
Get:69 http://in.archive.ubuntu.com/ubuntu focal-backports/universe i386 Packages [4,740 B]
Get:70 http://in.archive.ubuntu.com/ubuntu focal-backports/universe Translation-en [2,068 B]
Get:71 http://in.archive.ubuntu.com/ubuntu focal-backports/universe amd64 DEP-11 Metadata [10.3 kB]
Get:72 http://in.archive.ubuntu.com/ubuntu focal-backports/universe DEP-11 48x48 Icons [2,809 B]
Get:73 http://in.archive.ubuntu.com/ubuntu focal-backports/universe DEP-11 64x64 Icons [5,606 B]
Get:74 http://in.archive.ubuntu.com/ubuntu focal-backports/universe DEP-11 64x64@2 Icons [29 B]
Get:75 http://in.archive.ubuntu.com/ubuntu focal-backports/universe amd64 c-n-f Metadata [288 B]
Get:76 http://in.archive.ubuntu.com/ubuntu focal-backports/multiverse amd64 c-n-f Metadata [116 B]
Get:77 http://security.ubuntu.com/ubuntu focal-security/main Translation-en [166 kB]
Get:78 http://security.ubuntu.com/ubuntu focal-security/main amd64 DEP-11 Metadata [27.6 kB]
Get:79 http://security.ubuntu.com/ubuntu focal-security/main DEP-11 48x48 Icons [11.0 kB]
Get:80 http://security.ubuntu.com/ubuntu focal-security/main DEP-11 64x64 Icons [21.6 kB]
Get:81 http://security.ubuntu.com/ubuntu focal-security/main amd64 c-n-f Metadata [8,600 B]
Get:82 http://security.ubuntu.com/ubuntu focal-security/restricted amd64 Packages [406 kB]
Get:83 http://security.ubuntu.com/ubuntu focal-security/restricted i386 Packages [18.0 kB]
Get:84 http://security.ubuntu.com/ubuntu focal-security/restricted Translation-en [58.1 kB]
Get:85 http://security.ubuntu.com/ubuntu focal-security/restricted amd64 c-n-f Metadata [500 B]
Get:86 http://security.ubuntu.com/ubuntu focal-security/universe amd64 Packages [638 kB]
Get:87 http://security.ubuntu.com/ubuntu focal-security/universe i386 Packages [507 kB]
Get:88 http://security.ubuntu.com/ubuntu focal-security/universe Translation-en [101 kB]
Get:89 http://security.ubuntu.com/ubuntu focal-security/universe amd64 DEP-11 Metadata [61.0 kB]
Get:90 http://security.ubuntu.com/ubuntu focal-security/universe DEP-11 48x48 Icons [29.9 kB]
Get:91 http://security.ubuntu.com/ubuntu focal-security/universe DEP-11 64x64 Icons [57.8 kB]
Get:92 http://security.ubuntu.com/ubuntu focal-security/universe DEP-11 64x64@2 Icons [29 B]
Get:93 http://security.ubuntu.com/ubuntu focal-security/universe amd64 c-n-f Metadata [12.3 kB]
Get:94 http://security.ubuntu.com/ubuntu focal-security/multiverse amd64 Packages [21.9 kB]
Get:95 http://security.ubuntu.com/ubuntu focal-security/multiverse i386 Packages [7,224 B]
Get:96 http://security.ubuntu.com/ubuntu focal-security/multiverse Translation-en [4,948 B]
Get:97 http://security.ubuntu.com/ubuntu focal-security/multiverse amd64 DEP-11 Metadata [2,464 B]
Get:98 http://security.ubuntu.com/ubuntu focal-security/multiverse DEP-11 48x48 Icons [29 B]
Get:99 http://security.ubuntu.com/ubuntu focal-security/multiverse DEP-11 64x64 Icons [2,638 B]
Get:100 http://security.ubuntu.com/ubuntu focal-security/multiverse DEP-11 64x64@2 Icons [29 B]
Get:101 http://security.ubuntu.com/ubuntu focal-security/multiverse amd64 c-n-f Metadata [540 B] Fetched 46.3 MB in 14s (3,347 kB/s)
Reading package lists... Done
systemwork@ansuman-SYSTEMWORK:
libc6-i386 lib32stdc++6 lib32z1
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following additional packages will be installed:
lib32gcc-s1 libc-dev-bin libc6-dev libcrypt-dev libncurses-dev
linux-libc-dev manpages-dev
Suggested packages:
glibc-doc ncurses-doc
The following NEW packages will be installed:
lib32gcc-s1 lib32stdc++6 lib32z1 libc-dev-bin libc6-dev libc6-i386
libcrypt-dev libncurses-dev libncurses5-dev
linux-libc-dev manpages-dev
0 upgraded, 11 newly installed, 0 to remove and 30 not upgraded.
Need to get 9,771 kB of archives.
After this operation, 50.2 MB of additional disk space will be used.
Do you want to continue? [Y/n] y
Get:1 http://in.archive.ubuntu.com/
libc6-i386 amd64 2.31-0ubuntu9.2 [2,723 kB]
Get:2 http://in.archive.ubuntu.com/
lib32gcc-s1 amd64 10.3.0-1ubuntu1~20.04 [49.2 kB]
Get:3 http://in.archive.ubuntu.com/
lib32z1 amd64 1:1.2.11.dfsg-2ubuntu1.2 [56.5 kB]
Get:4 http://in.archive.ubuntu.com/
libc-dev-bin amd64 2.31-0ubuntu9.2 [71.8 kB]
Get:5 http://in.archive.ubuntu.com/
linux-libc-dev amd64 5.4.0-84.94 [1,115 kB]
Get:6 http://in.archive.ubuntu.com/
libcrypt-dev amd64 1:4.4.10-10ubuntu4 [104 kB]
Get:7 http://in.archive.ubuntu.com/
libc6-dev amd64 2.31-0ubuntu9.2 [2,520 kB]
Get:8 http://in.archive.ubuntu.com/
libncurses-dev amd64 6.2-0ubuntu2 [339 kB]
Get:9 http://in.archive.ubuntu.com/
libncurses5-dev amd64 6.2-0ubuntu2 [976 B]
Get:10 http://in.archive.ubuntu.com/
manpages-dev all 5.05-1 [2,266 kB]
Get:11 http://in.archive.ubuntu.com/
lib32stdc++6 amd64 10.3.0-1ubuntu1~20.04 [525 kB]
Fetched 9,771 kB in 2s (6,406 kB/s)
Selecting previously unselected package libc6-i386.
(Reading database ... 145569 files and directories currently installed.)
Preparing to unpack .../00-libc6-i386_2.31-
Unpacking libc6-i386 (2.31-0ubuntu9.2) ...
Selecting previously unselected package lib32gcc-s1.
Preparing to unpack .../01-lib32gcc-s1_10.3.0-
Unpacking lib32gcc-s1 (10.3.0-1ubuntu1~20.04) ...
Selecting previously unselected package lib32z1.
Preparing to unpack .../02-lib32z1_1%3a1.2.11.
Unpacking lib32z1 (1:1.2.11.dfsg-2ubuntu1.2) ...
Selecting previously unselected package libc-dev-bin.
Preparing to unpack .../03-libc-dev-bin_2.31-
Unpacking libc-dev-bin (2.31-0ubuntu9.2) ...
Selecting previously unselected package linux-libc-dev:amd64.
Preparing to unpack .../04-linux-libc-dev_5.4.0-
Unpacking linux-libc-dev:amd64 (5.4.0-84.94) ...
Selecting previously unselected package libcrypt-dev:amd64.
Preparing to unpack .../05-libcrypt-dev_1%3a4.4.
Unpacking libcrypt-dev:amd64 (1:4.4.10-10ubuntu4) ...
Selecting previously unselected package libc6-dev:amd64.
Preparing to unpack .../06-libc6-dev_2.31-
Unpacking libc6-dev:amd64 (2.31-0ubuntu9.2) ...
Selecting previously unselected package libncurses-dev:amd64.
Preparing to unpack .../07-libncurses-dev_6.2-
Unpacking libncurses-dev:amd64 (6.2-0ubuntu2) ...
Selecting previously unselected package libncurses5-dev:amd64.
Preparing to unpack .../08-libncurses5-dev_6.2-
Unpacking libncurses5-dev:amd64 (6.2-0ubuntu2) ...
Selecting previously unselected package manpages-dev.
Preparing to unpack .../09-manpages-dev_5.05-1_
Unpacking manpages-dev (5.05-1) ...
Selecting previously unselected package lib32stdc++6.
Preparing to unpack .../10-lib32stdc++6_10.3.0-
Unpacking lib32stdc++6 (10.3.0-1ubuntu1~20.04) ...
Setting up manpages-dev (5.05-1) ...
Setting up linux-libc-dev:amd64 (5.4.0-84.94) ...
Setting up libcrypt-dev:amd64 (1:4.4.10-10ubuntu4) ...
Setting up libc6-i386 (2.31-0ubuntu9.2) ...
Setting up libc-dev-bin (2.31-0ubuntu9.2) ...
Setting up lib32z1 (1:1.2.11.dfsg-2ubuntu1.2) ...
Setting up lib32gcc-s1 (10.3.0-1ubuntu1~20.04) ...
Setting up lib32stdc++6 (10.3.0-1ubuntu1~20.04) ...
Setting up libc6-dev:amd64 (2.31-0ubuntu9.2) ...
Setting up libncurses-dev:amd64 (6.2-0ubuntu2) ...
Setting up libncurses5-dev:amd64 (6.2-0ubuntu2) ...
Processing triggers for man-db (2.9.1-1) ...
Processing triggers for libc-bin (2.31-0ubuntu9.2) ...
systemwork@ansuman-SYSTEMWORK:~$ sudo apt install git
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following additional packages will be installed:
git-man liberror-perl
Suggested packages:
git-daemon-run | git-daemon-sysvinit git-doc git-el git-email
git-gui gitk gitweb git-cvs git-mediawiki git-svn
The following NEW packages will be installed:
git git-man liberror-perl
0 upgraded, 3 newly installed, 0 to remove and 4 not upgraded.
Need to get 5,468 kB of archives.
After this operation, 38.4 MB of additional disk space will be used.
Do you want to continue? [Y/n] y
Get:1 http://in.archive.ubuntu.com/ubuntu focal/main amd64 liberror-perl all 0.17029-1 [26.5 kB]
Get:2 http://in.archive.ubuntu.com/ubuntu focal-updates/main amd64 git-man all 1:2.25.1-1ubuntu3.1 [884 kB]
Get:3 http://in.archive.ubuntu.com/ubuntu focal-updates/main amd64 git amd64 1:2.25.1-1ubuntu3.1 [4,557 kB]
Fetched 5,468 kB in 1s (4,014 kB/s)
Selecting previously unselected package liberror-perl.
(Reading database ... 187842 files and directories currently installed.)
Preparing to unpack .../liberror-perl_0.17029-1_all.deb ...
Unpacking liberror-perl (0.17029-1) ...
Selecting previously unselected package git-man.
Preparing to unpack .../git-man_1%3a2.25.1-1ubuntu3.1_all.deb ...
Unpacking git-man (1:2.25.1-1ubuntu3.1) ...
Selecting previously unselected package git.
Preparing to unpack .../git_1%3a2.25.1-1ubuntu3.1_amd64.deb ...
Unpacking git (1:2.25.1-1ubuntu3.1) ...
Setting up liberror-perl (0.17029-1) ...
Setting up git-man (1:2.25.1-1ubuntu3.1) ...
Setting up git (1:2.25.1-1ubuntu3.1) ...
Processing triggers for man-db (2.9.1-1) ...
systemwork@ansuman-SYSTEMWORK:~$ git clone https://github.com/linux-sunxi/sunxi-tools.git
fatal: destination path 'sunxi-tools' already exists and is not an empty directory.
systemwork@ansuman-SYSTEMWORK:~$ cd sunxi-tools systemwork@ansuman-SYSTEMWORK:~/sunxi-tools$ make
Command 'make' not found, but can be installed with:
sudo apt install make # version 4.2.1-1.2, or
sudo apt install make-guile # version 4.2.1-1.2
systemwork@ansuman-SYSTEMWORK:~/sunxi-tools$ sudo apt install make #version 4.2.1-1.2
[sudo] password for systemwork:
Reading package lists... Done
Building dependency tree
Reading state information... Done
Suggested packages:
make-doc
The following NEW packages will be installed:
make
0 upgraded, 1 newly installed, 0 to remove and 4 not upgraded.
Need to get 162 kB of archives.
After this operation, 393 kB of additional disk space will be used.
Get:1 http://in.archive.ubuntu.com/ubuntu focal/main amd64 make amd64
4.2.1-1.2 [162 kB]
Fetched 162 kB in 0s (631 kB/s)
Selecting previously unselected package make.
(Reading database ... 188777 files and directories currently installed.)
Preparing to unpack .../make_4.2.1-1.2_amd64.deb ...
Unpacking make (4.2.1-1.2) ...
Setting up make (4.2.1-1.2) ...
Processing triggers for man-db (2.9.1-1) ...
systemwork@ansuman-SYSTEMWORK:~$ sudo apt install libusb-1.0-0-dev
libz-dev libfdt-dev
Reading package lists... Done
Building dependency tree
Reading state information... Done
Note, selecting 'zlib1g-dev' instead of 'libz-dev'
The following additional packages will be installed:
libfdt1 libusb-1.0-doc
The following NEW packages will be installed:
libfdt-dev libfdt1 libusb-1.0-0-dev libusb-1.0-doc zlib1g-dev
0 upgraded, 5 newly installed, 0 to remove and 4 not upgraded.
Need to get 441 kB of archives.
After this operation, 2,642 kB of additional disk space will be used.
Do you want to continue? [Y/n] y
Get:1 http://in.archive.ubuntu.com/ubuntu focal/main amd64 libusb-1.0-0-dev amd64 2:1.0.23-2build1 [64.4 kB]
Get:2 http://in.archive.ubuntu.com/ubuntu focal/main amd64 libusb-1.0-doc all 2:1.0.23-2build1 [172 kB]
Get:3 http://in.archive.ubuntu.com/ubuntu focal-updates/main amd64 zlib1g-dev amd64 1:1.2.11.dfsg-2ubuntu1.2 [155 kB]
Get:4 http://in.archive.ubuntu.com/ubuntu focal/main amd64 libfdt1 amd64 1.5.1-1 [18.8 kB]
Get:5 http://in.archive.ubuntu.com/ubuntu focal/main amd64 libfdt-dev amd64 1.5.1-1 [30.3 kB] Fetched 441 kB in 0s (956 kB/s)
Selecting previously unselected package libusb-1.0-0-dev:amd64.
(Reading database ... 188845 files and directories currently installed.)
Preparing to unpack .../libusb-1.0-0-dev_2%3a1.0.23-2build1_amd64.deb ...
Unpacking libusb-1.0-0-dev:amd64 (2:1.0.23-2build1) ...
Selecting previously unselected package libusb-1.0-doc.
Preparing to unpack .../libusb-1.0-doc_2%3a1.0.23-2build1_all.deb ...
Unpacking libusb-1.0-doc (2:1.0.23-2build1) ...
Selecting previously unselected package zlib1g-dev:amd64.
Preparing to unpack .../zlib1g-dev_1%3a1.2.11.dfsg-2ubuntu1.2_amd64.deb ...
Unpacking zlib1g-dev:amd64 (1:1.2.11.dfsg-2ubuntu1.2) ...
Selecting previously unselected package libfdt1:amd64.
Preparing to unpack .../libfdt1_1.5.1-1_amd64.deb ...
Unpacking libfdt1:amd64 (1.5.1-1) ...
Selecting previously unselected package libfdt-dev.
Preparing to unpack .../libfdt-dev_1.5.1-1_amd64.deb ...
Unpacking libfdt-dev (1.5.1-1) ...
Setting up libusb-1.0-doc (2:1.0.23-2build1) ...
Setting up libusb-1.0-0-dev:amd64 (2:1.0.23-2build1) ...
Setting up libfdt1:amd64 (1.5.1-1) ...
Setting up libfdt-dev (1.5.1-1) ...
Setting up zlib1g-dev:amd64 (1:1.2.11.dfsg-2ubuntu1.2) ...
Processing triggers for man-db (2.9.1-1) ...
Processing triggers for libc-bin (2.31-0ubuntu9.2) ...
systemwork@ansuman-SYSTEMWORK:~$ git clone https://github.com/linux-sunxi/sunxi-tools.git
Cloning into 'sunxi-tools'...
remote: Enumerating objects: 2092, done.
remote: Counting objects: 100% (51/51), done.
remote: Compressing objects: 100% (32/32), done.
remote: Total 2092 (delta 25), reused 34 (delta 19), pack-reused 2041
Receiving objects: 100% (2092/2092), 765.85 KiB | 64.00 KiB/s, done.
Resolving deltas: 100% (1275/1275), done.
systemwork@ansuman-SYSTEMWORK:~$ dir
Desktop Documents Downloads Music Pictures Public sunxi-tools
Templates Videos working-CHIP-tools
systemwork@ansuman-SYSTEMWORK:~$ cd sunxi-tools
systemwork@ansuman-SYSTEMWORK:~/sunxi-tools$ dir
adb-devprobe.sh fel-sdboot.lds Makefile script_bin.h
autoversion.sh fel-sdboot.S meminfo.c script.c
bin fel-spiflash.c nand-common.h script_extractor.c
boot_head.lds fel-spiflash.h nand-image-builder.c script_fex.c
boot_head.S fexc.c nand-part-a10.h script_fex.h
bootinfo.c fexc.h nand-part-a20.h script.h
common.h find-arm-gcc.sh nand-part.c script_uboot.c
fel.c fit_image.c nand-part-main.c script_uboot.h
fel-gpio fit_image.h phoenix_info.c soc_info.c
fel_lib.c include pio.c soc_info.h
fel_lib.h jtag-loop.c progress.c tests
fel-remotefunc-compiler.rb jtag-loop.lds progress.h thunks
fel-remotefunc-spi-data-transfer.c jtag-loop.S README.md
uart0-helloworld-sdboot.c
fel-remotefunc-spi-data-transfer.h LICENSE.md script_bin.c
uart0-helloworld-sdboot.lds
systemwork@ansuman-SYSTEMWORK:~$ sudo apt-get update
Hit:1 http://in.archive.ubuntu.com/ubuntu focal InRelease
Hit:2 http://in.archive.ubuntu.com/ubuntu focal-updates InRelease
Hit:3 http://in.archive.ubuntu.com/ubuntu focal-backports InRelease
Get:4 http://security.ubuntu.com/ubuntu focal-security InRelease [114 kB]
Get:5 http://security.ubuntu.com/ubuntu focal-security/main i386 Packages [281 kB]
Get:6 http://security.ubuntu.com/ubuntu focal-security/main amd64 Packages [861 kB]
Get:7 http://security.ubuntu.com/ubuntu focal-security/main Translation-en [166 kB]
Get:8 http://security.ubuntu.com/ubuntu focal-security/main amd64 c-n-f Metadata [8,664 B]
Get:9 http://security.ubuntu.com/ubuntu focal-security/universe amd64 Packages [638 kB]
Get:10 http://security.ubuntu.com/ubuntu focal-security/universe i386 Packages [507 kB]
Get:11 http://security.ubuntu.com/ubuntu focal-security/universe Translation-en [101 kB]
Get:12 http://security.ubuntu.com/ubuntu focal-security/universe amd64 c-n-f Metadata [12.3 kB]
Fetched 2,689 kB in 4s (716 kB/s)
Reading package lists... Done
systemwork@ansuman-SYSTEMWORK:
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following additional packages will be installed:
adb android-libadb android-libbacktrace android-libboringssl
android-libcrypto-utils android-libetc1
android-libf2fs-utils android-libunwind android-libutils
android-libziparchive android-sdk-platform-tools
android-sdk-platform-tools-
fastboot graphviz hprof-conv libann0 libcdt5
libcgraph6 libf2fs-format4 libf2fs5 libgts-0.7-5 libgts-bin libgvc6
libgvpr2 liblab-gamut1 libpathplan4 p7zip
p7zip-full sqlite3
Suggested packages:
gsfonts graphviz-doc p7zip-rar sqlite3-doc
The following NEW packages will be installed:
adb android-libadb android-libbacktrace android-libboringssl
android-libcrypto-utils android-libetc1
android-libf2fs-utils android-libunwind android-libutils
android-libziparchive android-sdk-platform-tools
android-sdk-platform-tools-
etc1tool f2fs-tools fastboot graphviz
hprof-conv libann0 libcdt5 libcgraph6 libf2fs-format4 libf2fs5
libgts-0.7-5 libgts-bin libgvc6 libgvpr2
liblab-gamut1 libpathplan4 p7zip p7zip-full sqlite3
0 upgraded, 33 newly installed, 0 to remove and 5 not upgraded.
Need to get 5,554 kB of archives.
After this operation, 21.9 MB of additional disk space will be used.
Do you want to continue? [Y/n] y
Get:1 http://in.archive.ubuntu.com/
android-libboringssl amd64 8.1.0+r23-2build1 [538 kB]
Get:2 http://in.archive.ubuntu.com/
android-libcrypto-utils amd64 1:8.1.0+r23-5ubuntu2 [8,324 B]
Get:3 http://in.archive.ubuntu.com/
android-libadb amd64 1:8.1.0+r23-5ubuntu2 [123 kB]
Get:4 http://in.archive.ubuntu.com/
amd64 1:8.1.0+r23-5ubuntu2 [87.6 kB]
Get:5 http://in.archive.ubuntu.com/
amd64 16.02+dfsg-7build1 [358 kB]
Get:6 http://in.archive.ubuntu.com/
p7zip-full amd64 16.02+dfsg-7build1 [1,187 kB]
Get:7 http://in.archive.ubuntu.com/
android-libunwind amd64 8.1.0+r23-2 [50.7 kB]
Get:8 http://in.archive.ubuntu.com/
android-libbacktrace amd64 1:8.1.0+r23-5ubuntu2 [45.2 kB]
Get:9 http://in.archive.ubuntu.com/
android-libetc1 amd64 1:8.1.0+r23-2build1 [17.7 kB]
Get:10 http://in.archive.ubuntu.com/
libf2fs5 amd64 1.11.0-1.1ubuntu1 [14.1 kB]
Get:11 http://in.archive.ubuntu.com/
libf2fs-format4 amd64 1.11.0-1.1ubuntu1 [16.6 kB]
Get:12 http://in.archive.ubuntu.com/
android-libf2fs-utils amd64 8.1.0+r23-2 [11.0 kB]
Get:13 http://in.archive.ubuntu.com/
android-libutils amd64 1:8.1.0+r23-5ubuntu2 [48.1 kB]
Get:14 http://in.archive.ubuntu.com/
android-libziparchive amd64 1:8.1.0+r23-5ubuntu2 [23.5 kB]
Get:15 http://in.archive.ubuntu.com/
android-sdk-platform-tools-
Get:16 http://in.archive.ubuntu.com/
f2fs-tools amd64 1.11.0-1.1ubuntu1 [154 kB]
Get:17 http://in.archive.ubuntu.com/
libann0 amd64 1.1.2+doc-7build1 [26.0 kB]
Get:18 http://in.archive.ubuntu.com/
libcdt5 amd64 2.42.2-3build2 [18.7 kB]
Get:19 http://in.archive.ubuntu.com/
libcgraph6 amd64 2.42.2-3build2 [41.3 kB]
Get:20 http://in.archive.ubuntu.com/
libgts-0.7-5 amd64 0.7.6+darcs121130-4 [150 kB]
Get:21 http://in.archive.ubuntu.com/
libpathplan4 amd64 2.42.2-3build2 [21.9 kB]
Get:22 http://in.archive.ubuntu.com/
libgvc6 amd64 2.42.2-3build2 [647 kB]
Get:23 http://in.archive.ubuntu.com/
libgvpr2 amd64 2.42.2-3build2 [167 kB]
Get:24 http://in.archive.ubuntu.com/
liblab-gamut1 amd64 2.42.2-3build2 [177 kB]
Get:25 http://in.archive.ubuntu.com/
graphviz amd64 2.42.2-3build2 [590 kB]
Get:26 http://in.archive.ubuntu.com/
dmtracedump amd64 8.1.0+r23-3 [26.3 kB]
Get:27 http://in.archive.ubuntu.com/
etc1tool amd64 8.1.0+r23-1build1 [18.5 kB]
Get:28 http://in.archive.ubuntu.com/
fastboot amd64 1:8.1.0+r23-5ubuntu2 [58.5 kB]
Get:29 http://in.archive.ubuntu.com/
hprof-conv amd64 8.1.0+r23-2 [13.2 kB]
Get:30 http://in.archive.ubuntu.com/
sqlite3 amd64 3.31.1-4ubuntu0.2 [860 kB]
Get:31 http://in.archive.ubuntu.com/
android-sdk-platform-tools amd64 27.0.0+12 [3,564 B]
Get:32 http://in.archive.ubuntu.com/
libgts-bin amd64 0.7.6+darcs121130-4 [41.3 kB]
Get:33 http://in.archive.ubuntu.com/
android-tools-fastboot all 1:8.1.0+r23-5ubuntu2 [4,060 B]
Fetched 5,554 kB in 1s (4,804 kB/s)
Extracting templates from packages: 100%
Selecting previously unselected package android-libboringssl.
(Reading database ... 188970 files and directories currently installed.)
Preparing to unpack .../00-android-libboringssl_8.
Unpacking android-libboringssl (8.1.0+r23-2build1) ...
Selecting previously unselected package android-libcrypto-utils.
Preparing to unpack
.../01-android-libcrypto-
Unpacking android-libcrypto-utils (1:8.1.0+r23-5ubuntu2) ...
Selecting previously unselected package android-libadb.
Preparing to unpack .../02-android-libadb_1%3a8.1.
Unpacking android-libadb (1:8.1.0+r23-5ubuntu2) ...
Selecting previously unselected package adb.
Preparing to unpack .../03-adb_1%3a8.1.0+r23-
Unpacking adb (1:8.1.0+r23-5ubuntu2) ...
Selecting previously unselected package p7zip.
Preparing to unpack .../04-p7zip_16.02+dfsg-
Unpacking p7zip (16.02+dfsg-7build1) ...
Selecting previously unselected package p7zip-full.
Preparing to unpack .../05-p7zip-full_16.02+dfsg-
Unpacking p7zip-full (16.02+dfsg-7build1) ...
Selecting previously unselected package android-libunwind.
Preparing to unpack .../06-android-libunwind_8.1.
Unpacking android-libunwind (8.1.0+r23-2) ...
Selecting previously unselected package android-libbacktrace.
Preparing to unpack
.../07-android-libbacktrace_1%
Unpacking android-libbacktrace (1:8.1.0+r23-5ubuntu2) ...
Selecting previously unselected package android-libetc1.
Preparing to unpack .../08-android-libetc1_1%3a8.
Unpacking android-libetc1 (1:8.1.0+r23-2build1) ...
Selecting previously unselected package libf2fs5:amd64.
Preparing to unpack .../09-libf2fs5_1.11.0-1.
Unpacking libf2fs5:amd64 (1.11.0-1.1ubuntu1) ...
Selecting previously unselected package libf2fs-format4:amd64.
Preparing to unpack .../10-libf2fs-format4_1.11.0-
Unpacking libf2fs-format4:amd64 (1.11.0-1.1ubuntu1) ...
Selecting previously unselected package android-libf2fs-utils.
Preparing to unpack .../11-android-libf2fs-utils_
Unpacking android-libf2fs-utils (8.1.0+r23-2) ...
Selecting previously unselected package android-libutils.
Preparing to unpack .../12-android-libutils_1%3a8.
Unpacking android-libutils (1:8.1.0+r23-5ubuntu2) ...
Selecting previously unselected package android-libziparchive.
Preparing to unpack
.../13-android-libziparchive_
Unpacking android-libziparchive (1:8.1.0+r23-5ubuntu2) ...
Selecting previously unselected package android-sdk-platform-tools-
Preparing to unpack
.../14-android-sdk-platform-
Unpacking android-sdk-platform-tools-
Selecting previously unselected package f2fs-tools.
Preparing to unpack .../15-f2fs-tools_1.11.0-1.
Unpacking f2fs-tools (1.11.0-1.1ubuntu1) ...
Selecting previously unselected package libann0.
Preparing to unpack .../16-libann0_1.1.2+doc-
Unpacking libann0 (1.1.2+doc-7build1) ...
Selecting previously unselected package libcdt5:amd64.
Preparing to unpack .../17-libcdt5_2.42.2-3build2_
Unpacking libcdt5:amd64 (2.42.2-3build2) ...
Selecting previously unselected package libcgraph6:amd64.
Preparing to unpack .../18-libcgraph6_2.42.2-
Unpacking libcgraph6:amd64 (2.42.2-3build2) ...
Selecting previously unselected package libgts-0.7-5:amd64.
Preparing to unpack .../19-libgts-0.7-5_0.7.6+
Unpacking libgts-0.7-5:amd64 (0.7.6+darcs121130-4) ...
Selecting previously unselected package libpathplan4:amd64.
Preparing to unpack .../20-libpathplan4_2.42.2-
Unpacking libpathplan4:amd64 (2.42.2-3build2) ...
Selecting previously unselected package libgvc6.
Preparing to unpack .../21-libgvc6_2.42.2-3build2_
Unpacking libgvc6 (2.42.2-3build2) ...
Selecting previously unselected package libgvpr2:amd64.
Preparing to unpack .../22-libgvpr2_2.42.2-
Unpacking libgvpr2:amd64 (2.42.2-3build2) ...
Selecting previously unselected package liblab-gamut1:amd64.
Preparing to unpack .../23-liblab-gamut1_2.42.2-
Unpacking liblab-gamut1:amd64 (2.42.2-3build2) ...
Selecting previously unselected package graphviz.
Preparing to unpack .../24-graphviz_2.42.2-
Unpacking graphviz (2.42.2-3build2) ...
Selecting previously unselected package dmtracedump.
Preparing to unpack .../25-dmtracedump_8.1.0+r23-
Unpacking dmtracedump (8.1.0+r23-3) ...
Selecting previously unselected package etc1tool.
Preparing to unpack .../26-etc1tool_8.1.0+r23-
Unpacking etc1tool (8.1.0+r23-1build1) ...
Selecting previously unselected package fastboot.
Preparing to unpack .../27-fastboot_1%3a8.1.0+r23-
Unpacking fastboot (1:8.1.0+r23-5ubuntu2) ...
Selecting previously unselected package hprof-conv.
Preparing to unpack .../28-hprof-conv_8.1.0+r23-2_
Unpacking hprof-conv (8.1.0+r23-2) ...
Selecting previously unselected package sqlite3.
Preparing to unpack .../29-sqlite3_3.31.1-
Unpacking sqlite3 (3.31.1-4ubuntu0.2) ...
Selecting previously unselected package android-sdk-platform-tools.
Preparing to unpack .../30-android-sdk-platform-
Unpacking android-sdk-platform-tools (27.0.0+12) ...
Selecting previously unselected package libgts-bin.
Preparing to unpack .../31-libgts-bin_0.7.6+
Unpacking libgts-bin (0.7.6+darcs121130-4) ...
Selecting previously unselected package android-tools-fastboot.
Preparing to unpack
.../32-android-tools-fastboot_
Unpacking android-tools-fastboot (1:8.1.0+r23-5ubuntu2) ...
Setting up android-sdk-platform-tools-
Setting up android-libetc1 (1:8.1.0+r23-2build1) ...
Setting up liblab-gamut1:amd64 (2.42.2-3build2) ...
Setting up libf2fs5:amd64 (1.11.0-1.1ubuntu1) ...
Setting up libgts-0.7-5:amd64 (0.7.6+darcs121130-4) ...
Setting up libpathplan4:amd64 (2.42.2-3build2) ...
Setting up libann0 (1.1.2+doc-7build1) ...
Setting up android-libboringssl (8.1.0+r23-2build1) ...
Setting up android-libcrypto-utils (1:8.1.0+r23-5ubuntu2) ...
Setting up libcdt5:amd64 (2.42.2-3build2) ...
Setting up libcgraph6:amd64 (2.42.2-3build2) ...
Setting up etc1tool (8.1.0+r23-1build1) ...
Setting up hprof-conv (8.1.0+r23-2) ...
Setting up libf2fs-format4:amd64 (1.11.0-1.1ubuntu1) ...
Setting up sqlite3 (3.31.1-4ubuntu0.2) ...
Setting up p7zip (16.02+dfsg-7build1) ...
Setting up libgts-bin (0.7.6+darcs121130-4) ...
Setting up f2fs-tools (1.11.0-1.1ubuntu1) ...
Setting up android-libf2fs-utils (8.1.0+r23-2) ...
Setting up android-libadb (1:8.1.0+r23-5ubuntu2) ...
Setting up p7zip-full (16.02+dfsg-7build1) ...
Setting up adb (1:8.1.0+r23-5ubuntu2) ...
Setting up android-libunwind (8.1.0+r23-2) ...
Setting up libgvc6 (2.42.2-3build2) ...
Setting up android-libbacktrace (1:8.1.0+r23-5ubuntu2) ...
Setting up libgvpr2:amd64 (2.42.2-3build2) ...
Setting up graphviz (2.42.2-3build2) ...
Setting up android-libutils (1:8.1.0+r23-5ubuntu2) ...
Setting up dmtracedump (8.1.0+r23-3) ...
Setting up android-libziparchive (1:8.1.0+r23-5ubuntu2) ...
Setting up fastboot (1:8.1.0+r23-5ubuntu2) ...
Setting up android-sdk-platform-tools (27.0.0+12) ...
Setting up android-tools-fastboot (1:8.1.0+r23-5ubuntu2) ...
Processing triggers for libc-bin (2.31-0ubuntu9.2) ...
Processing triggers for man-db (2.9.1-1) ...
Processing triggers for initramfs-tools (0.136ubuntu6.6) ...
update-initramfs: Generating /boot/initrd.img-5.11.0-34-
systemwork@ansuman-SYSTEMWORK:
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following NEW packages will be installed:
curl
0 upgraded, 1 newly installed, 0 to remove and 5 not upgraded.
Need to get 161 kB of archives.
After this operation, 411 kB of additional disk space will be used.
Get:1 http://in.archive.ubuntu.com/
curl amd64 7.68.0-1ubuntu2.6 [161 kB]
Fetched 161 kB in 0s (541 kB/s)
Selecting previously unselected package curl.
(Reading database ... 189410 files and directories currently installed.)
Preparing to unpack .../curl_7.68.0-1ubuntu2.6_
Unpacking curl (7.68.0-1ubuntu2.6) ...
Setting up curl (7.68.0-1ubuntu2.6) ...
Processing triggers for man-db (2.9.1-1) ...
systemwork@ansuman-SYSTEMWORK:
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 11148 100 11148 0 0 24182 0 --:--:-- --:--:-- --:--:-- 24182
====[ Installing for Linux ]====
Hit:1 http://in.archive.ubuntu.com/
Hit:2 http://in.archive.ubuntu.com/
Hit:3 http://in.archive.ubuntu.com/
Hit:4 http://security.ubuntu.com/
Reading package lists... Done
Reading package lists... Done
Building dependency tree
Reading state information... Done
Note, selecting 'python-dev-is-python2' instead of 'python-dev'
Package python-pip is not available, but is referred to by another package.
This may mean that the package is missing, has been obsoleted, or
is only available from another source
However the following packages replace it:
python3-pip
W: --force-yes is deprecated, use one of the options starting with
--allow instead.
E: Package 'python-pip' has no installation candidate
==> could not install python-pip
systemwork@ansuman-SYSTEMWORK:
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following additional packages will be installed:
binutils binutils-common binutils-x86-64-linux-gnu build-essential
dpkg-dev fakeroot g++ g++-9 gcc gcc-9
libalgorithm-diff-perl libalgorithm-diff-xs-perl
libalgorithm-merge-perl libasan5 libatomic1 libbinutils
libctf-nobfd0 libctf0 libexpat1-dev libfakeroot libgcc-9-dev libitm1
liblsan0 libpython3-dev libpython3.8-dev
libquadmath0 libstdc++-9-dev libtsan0 libubsan1 python-pip-whl
python3-dev python3-distutils python3-setuptools
python3-wheel python3.8-dev
Suggested packages:
binutils-doc debian-keyring g++-multilib g++-9-multilib gcc-9-doc
gcc-multilib autoconf automake libtool flex
bison gcc-doc gcc-9-multilib gcc-9-locales libstdc++-9-doc
python-setuptools-doc
The following NEW packages will be installed:
binutils binutils-common binutils-x86-64-linux-gnu build-essential
dpkg-dev fakeroot g++ g++-9 gcc gcc-9
libalgorithm-diff-perl libalgorithm-diff-xs-perl
libalgorithm-merge-perl libasan5 libatomic1 libbinutils
libctf-nobfd0 libctf0 libexpat1-dev libfakeroot libgcc-9-dev libitm1
liblsan0 libpython3-dev libpython3.8-dev
libquadmath0 libstdc++-9-dev libtsan0 libubsan1 python-pip-whl
python3-dev python3-distutils python3-pip
python3-setuptools python3-wheel python3.8-dev
0 upgraded, 36 newly installed, 0 to remove and 5 not upgraded.
Need to get 35.3 MB of archives.
After this operation, 153 MB of additional disk space will be used.
Do you want to continue? [Y/n] y
Get:1 http://in.archive.ubuntu.com/
binutils-common amd64 2.34-6ubuntu1.1 [207 kB]
Get:2 http://in.archive.ubuntu.com/
libbinutils amd64 2.34-6ubuntu1.1 [475 kB]
Get:3 http://in.archive.ubuntu.com/
libctf-nobfd0 amd64 2.34-6ubuntu1.1 [47.1 kB]
Get:4 http://in.archive.ubuntu.com/
libctf0 amd64 2.34-6ubuntu1.1 [46.6 kB]
Get:5 http://in.archive.ubuntu.com/
binutils-x86-64-linux-gnu amd64 2.34-6ubuntu1.1 [1,613 kB]
Get:6 http://in.archive.ubuntu.com/
binutils amd64 2.34-6ubuntu1.1 [3,380 B]
Get:7 http://in.archive.ubuntu.com/
libitm1 amd64 10.3.0-1ubuntu1~20.04 [26.2 kB]
Get:8 http://in.archive.ubuntu.com/
libatomic1 amd64 10.3.0-1ubuntu1~20.04 [9,284 B]
Get:9 http://in.archive.ubuntu.com/
libasan5 amd64 9.3.0-17ubuntu1~20.04 [394 kB]
Get:10 http://in.archive.ubuntu.com/
liblsan0 amd64 10.3.0-1ubuntu1~20.04 [835 kB]
Get:11 http://in.archive.ubuntu.com/
libtsan0 amd64 10.3.0-1ubuntu1~20.04 [2,009 kB]
Get:12 http://in.archive.ubuntu.com/
libubsan1 amd64 10.3.0-1ubuntu1~20.04 [784 kB]
Get:13 http://in.archive.ubuntu.com/
libquadmath0 amd64 10.3.0-1ubuntu1~20.04 [146 kB]
Get:14 http://in.archive.ubuntu.com/
libgcc-9-dev amd64 9.3.0-17ubuntu1~20.04 [2,360 kB]
Get:15 http://in.archive.ubuntu.com/
gcc-9 amd64 9.3.0-17ubuntu1~20.04 [8,241 kB]
Get:16 http://in.archive.ubuntu.com/
4:9.3.0-1ubuntu2 [5,208 B]
Get:17 http://in.archive.ubuntu.com/
libstdc++-9-dev amd64 9.3.0-17ubuntu1~20.04 [1,714 kB]
Get:18 http://in.archive.ubuntu.com/
g++-9 amd64 9.3.0-17ubuntu1~20.04 [8,405 kB]
Get:19 http://in.archive.ubuntu.com/
4:9.3.0-1ubuntu2 [1,604 B]
Get:20 http://in.archive.ubuntu.com/
all 1.19.7ubuntu3 [679 kB]
Get:21 http://in.archive.ubuntu.com/
build-essential amd64 12.8ubuntu1.1 [4,664 B]
Get:22 http://in.archive.ubuntu.com/
libfakeroot amd64 1.24-1 [25.7 kB]
Get:23 http://in.archive.ubuntu.com/
amd64 1.24-1 [62.6 kB]
Get:24 http://in.archive.ubuntu.com/
libalgorithm-diff-perl all 1.19.03-2 [46.6 kB]
Get:25 http://in.archive.ubuntu.com/
libalgorithm-diff-xs-perl amd64 0.04-6 [11.3 kB]
Get:26 http://in.archive.ubuntu.com/
libalgorithm-merge-perl all 0.08-3 [12.0 kB]
Get:27 http://in.archive.ubuntu.com/
libexpat1-dev amd64 2.2.9-1build1 [116 kB]
Get:28 http://in.archive.ubuntu.com/
libpython3.8-dev amd64 3.8.10-0ubuntu1~20.04 [3,943 kB]
Get:29 http://in.archive.ubuntu.com/
libpython3-dev amd64 3.8.2-0ubuntu2 [7,236 B]
Get:30 http://in.archive.ubuntu.com/
amd64 python-pip-whl all 20.0.2-5ubuntu1.6 [1,805 kB]
Get:31 http://in.archive.ubuntu.com/
python3.8-dev amd64 3.8.10-0ubuntu1~20.04 [510 kB]
Get:32 http://in.archive.ubuntu.com/
python3-distutils all 3.8.10-0ubuntu1~20.04 [141 kB]
Get:33 http://in.archive.ubuntu.com/
python3-dev amd64 3.8.2-0ubuntu2 [1,212 B]
Get:34 http://in.archive.ubuntu.com/
python3-setuptools all 45.2.0-1 [330 kB]
Get:35 http://in.archive.ubuntu.com/
python3-wheel all 0.34.2-1 [23.8 kB]
Get:36 http://in.archive.ubuntu.com/
amd64 python3-pip all 20.0.2-5ubuntu1.6 [231 kB]
Fetched 35.3 MB in 7s (5,353 kB/s)
Extracting templates from packages: 100%
Selecting previously unselected package binutils-common:amd64.
(Reading database ... 189417 files and directories currently installed.)
Preparing to unpack .../00-binutils-common_2.34-
Unpacking binutils-common:amd64 (2.34-6ubuntu1.1) ...
Selecting previously unselected package libbinutils:amd64.
Preparing to unpack .../01-libbinutils_2.34-
Unpacking libbinutils:amd64 (2.34-6ubuntu1.1) ...
Selecting previously unselected package libctf-nobfd0:amd64.
Preparing to unpack .../02-libctf-nobfd0_2.34-
Unpacking libctf-nobfd0:amd64 (2.34-6ubuntu1.1) ...
Selecting previously unselected package libctf0:amd64.
Preparing to unpack .../03-libctf0_2.34-6ubuntu1.
Unpacking libctf0:amd64 (2.34-6ubuntu1.1) ...
Selecting previously unselected package binutils-x86-64-linux-gnu.
Preparing to unpack
.../04-binutils-x86-64-linux-
Unpacking binutils-x86-64-linux-gnu (2.34-6ubuntu1.1) ...
Selecting previously unselected package binutils.
Preparing to unpack .../05-binutils_2.34-6ubuntu1.
Unpacking binutils (2.34-6ubuntu1.1) ...
Selecting previously unselected package libitm1:amd64.
Preparing to unpack .../06-libitm1_10.3.0-
Unpacking libitm1:amd64 (10.3.0-1ubuntu1~20.04) ...
Selecting previously unselected package libatomic1:amd64.
Preparing to unpack .../07-libatomic1_10.3.0-
Unpacking libatomic1:amd64 (10.3.0-1ubuntu1~20.04) ...
Selecting previously unselected package libasan5:amd64.
Preparing to unpack .../08-libasan5_9.3.0-
Unpacking libasan5:amd64 (9.3.0-17ubuntu1~20.04) ...
Selecting previously unselected package liblsan0:amd64.
Preparing to unpack .../09-liblsan0_10.3.0-
Unpacking liblsan0:amd64 (10.3.0-1ubuntu1~20.04) ...
Selecting previously unselected package libtsan0:amd64.
Preparing to unpack .../10-libtsan0_10.3.0-
Unpacking libtsan0:amd64 (10.3.0-1ubuntu1~20.04) ...
Selecting previously unselected package libubsan1:amd64.
Preparing to unpack .../11-libubsan1_10.3.0-
Unpacking libubsan1:amd64 (10.3.0-1ubuntu1~20.04) ...
Selecting previously unselected package libquadmath0:amd64.
Preparing to unpack .../12-libquadmath0_10.3.0-
Unpacking libquadmath0:amd64 (10.3.0-1ubuntu1~20.04) ...
Selecting previously unselected package libgcc-9-dev:amd64.
Preparing to unpack .../13-libgcc-9-dev_9.3.0-
Unpacking libgcc-9-dev:amd64 (9.3.0-17ubuntu1~20.04) ...
Selecting previously unselected package gcc-9.
Preparing to unpack .../14-gcc-9_9.3.0-17ubuntu1~
Unpacking gcc-9 (9.3.0-17ubuntu1~20.04) ...
Selecting previously unselected package gcc.
Preparing to unpack .../15-gcc_4%3a9.3.0-1ubuntu2_
Unpacking gcc (4:9.3.0-1ubuntu2) ...
Selecting previously unselected package libstdc++-9-dev:amd64.
Preparing to unpack .../16-libstdc++-9-dev_9.3.0-
Unpacking libstdc++-9-dev:amd64 (9.3.0-17ubuntu1~20.04) ...
Selecting previously unselected package g++-9.
Preparing to unpack .../17-g++-9_9.3.0-17ubuntu1~
Unpacking g++-9 (9.3.0-17ubuntu1~20.04) ...
Selecting previously unselected package g++.
Preparing to unpack .../18-g++_4%3a9.3.0-1ubuntu2_
Unpacking g++ (4:9.3.0-1ubuntu2) ...
Selecting previously unselected package dpkg-dev.
Preparing to unpack .../19-dpkg-dev_1.19.7ubuntu3_
Unpacking dpkg-dev (1.19.7ubuntu3) ...
Selecting previously unselected package build-essential.
Preparing to unpack .../20-build-essential_12.
Unpacking build-essential (12.8ubuntu1.1) ...
Selecting previously unselected package libfakeroot:amd64.
Preparing to unpack .../21-libfakeroot_1.24-1_
Unpacking libfakeroot:amd64 (1.24-1) ...
Selecting previously unselected package fakeroot.
Preparing to unpack .../22-fakeroot_1.24-1_amd64.
Unpacking fakeroot (1.24-1) ...
Selecting previously unselected package libalgorithm-diff-perl.
Preparing to unpack .../23-libalgorithm-diff-perl_
Unpacking libalgorithm-diff-perl (1.19.03-2) ...
Selecting previously unselected package libalgorithm-diff-xs-perl.
Preparing to unpack .../24-libalgorithm-diff-xs-
Unpacking libalgorithm-diff-xs-perl (0.04-6) ...
Selecting previously unselected package libalgorithm-merge-perl.
Preparing to unpack .../25-libalgorithm-merge-
Unpacking libalgorithm-merge-perl (0.08-3) ...
Selecting previously unselected package libexpat1-dev:amd64.
Preparing to unpack .../26-libexpat1-dev_2.2.9-
Unpacking libexpat1-dev:amd64 (2.2.9-1build1) ...
Selecting previously unselected package libpython3.8-dev:amd64.
Preparing to unpack .../27-libpython3.8-dev_3.8.
Unpacking libpython3.8-dev:amd64 (3.8.10-0ubuntu1~20.04) ...
Selecting previously unselected package libpython3-dev:amd64.
Preparing to unpack .../28-libpython3-dev_3.8.2-
Unpacking libpython3-dev:amd64 (3.8.2-0ubuntu2) ...
Selecting previously unselected package python-pip-whl.
Preparing to unpack .../29-python-pip-whl_20.0.2-
Unpacking python-pip-whl (20.0.2-5ubuntu1.6) ...
Selecting previously unselected package python3.8-dev.
Preparing to unpack .../30-python3.8-dev_3.8.10-
Unpacking python3.8-dev (3.8.10-0ubuntu1~20.04) ...
Selecting previously unselected package python3-distutils.
Preparing to unpack .../31-python3-distutils_3.8.
Unpacking python3-distutils (3.8.10-0ubuntu1~20.04) ...
Selecting previously unselected package python3-dev.
Preparing to unpack .../32-python3-dev_3.8.2-
Unpacking python3-dev (3.8.2-0ubuntu2) ...
Selecting previously unselected package python3-setuptools.
Preparing to unpack .../33-python3-setuptools_45.
Unpacking python3-setuptools (45.2.0-1) ...
Selecting previously unselected package python3-wheel.
Preparing to unpack .../34-python3-wheel_0.34.2-1_
Unpacking python3-wheel (0.34.2-1) ...
Selecting previously unselected package python3-pip.
Preparing to unpack .../35-python3-pip_20.0.2-
Unpacking python3-pip (20.0.2-5ubuntu1.6) ...
Setting up python3-distutils (3.8.10-0ubuntu1~20.04) ...
Setting up python3-setuptools (45.2.0-1) ...
Setting up libalgorithm-diff-perl (1.19.03-2) ...
Setting up binutils-common:amd64 (2.34-6ubuntu1.1) ...
Setting up libctf-nobfd0:amd64 (2.34-6ubuntu1.1) ...
Setting up python3-wheel (0.34.2-1) ...
Setting up libfakeroot:amd64 (1.24-1) ...
Setting up fakeroot (1.24-1) ...
update-alternatives: using /usr/bin/fakeroot-sysv to provide
/usr/bin/fakeroot (fakeroot) in auto mode
Setting up libasan5:amd64 (9.3.0-17ubuntu1~20.04) ...
Setting up libexpat1-dev:amd64 (2.2.9-1build1) ...
Setting up libpython3.8-dev:amd64 (3.8.10-0ubuntu1~20.04) ...
Setting up libquadmath0:amd64 (10.3.0-1ubuntu1~20.04) ...
Setting up libatomic1:amd64 (10.3.0-1ubuntu1~20.04) ...
Setting up python3.8-dev (3.8.10-0ubuntu1~20.04) ...
Setting up libubsan1:amd64 (10.3.0-1ubuntu1~20.04) ...
Setting up python-pip-whl (20.0.2-5ubuntu1.6) ...
Setting up libbinutils:amd64 (2.34-6ubuntu1.1) ...
Setting up libalgorithm-diff-xs-perl (0.04-6) ...
Setting up liblsan0:amd64 (10.3.0-1ubuntu1~20.04) ...
Setting up libitm1:amd64 (10.3.0-1ubuntu1~20.04) ...
Setting up libalgorithm-merge-perl (0.08-3) ...
Setting up libtsan0:amd64 (10.3.0-1ubuntu1~20.04) ...
Setting up libctf0:amd64 (2.34-6ubuntu1.1) ...
Setting up libpython3-dev:amd64 (3.8.2-0ubuntu2) ...
Setting up libgcc-9-dev:amd64 (9.3.0-17ubuntu1~20.04) ...
Setting up python3-dev (3.8.2-0ubuntu2) ...
Setting up python3-pip (20.0.2-5ubuntu1.6) ...
Setting up binutils-x86-64-linux-gnu (2.34-6ubuntu1.1) ...
Setting up libstdc++-9-dev:amd64 (9.3.0-17ubuntu1~20.04) ...
Setting up binutils (2.34-6ubuntu1.1) ...
Setting up dpkg-dev (1.19.7ubuntu3) ...
Setting up gcc-9 (9.3.0-17ubuntu1~20.04) ...
Setting up gcc (4:9.3.0-1ubuntu2) ...
Setting up g++-9 (9.3.0-17ubuntu1~20.04) ...
Setting up g++ (4:9.3.0-1ubuntu2) ...
update-alternatives: using /usr/bin/g++ to provide /usr/bin/c++ (c++)
in auto mode
Setting up build-essential (12.8ubuntu1.1) ...
Processing triggers for man-db (2.9.1-1) ...
Processing triggers for libc-bin (2.31-0ubuntu9.2) ...
systemwork@ansuman-SYSTEMWORK:
pip 20.0.2 from /usr/lib/python3/dist-
systemwork@ansuman-SYSTEMWORK:
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 11148 100 11148 0 0 25051 0 --:--:-- --:--:-- --:--:-- 24995
====[ Installing for Linux ]====
Hit:1 http://in.archive.ubuntu.com/
Hit:2 http://in.archive.ubuntu.com/
Hit:3 http://in.archive.ubuntu.com/
Hit:4 http://security.ubuntu.com/
Reading package lists... Done
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following additional packages will be installed:
device-tree-compiler libubootenv-tool libubootenv0.1
The following NEW packages will be installed:
device-tree-compiler libubootenv-tool libubootenv0.1 u-boot-tools
0 upgraded, 4 newly installed, 0 to remove and 5 not upgraded.
Need to get 428 kB of archives.
After this operation, 1,295 kB of additional disk space will be used.
Get:1 http://in.archive.ubuntu.com/
libubootenv0.1 amd64 0.2-1 [10.1 kB]
Get:2 http://in.archive.ubuntu.com/
libubootenv-tool amd64 0.2-1 [5,396 B]
Get:3 http://in.archive.ubuntu.com/
u-boot-tools amd64 2021.01+dfsg-3ubuntu0~20.04.3 [165 kB]
Get:4 http://in.archive.ubuntu.com/
device-tree-compiler amd64 1.5.1-1 [247 kB]
Fetched 428 kB in 0s (1,369 kB/s)
Selecting previously unselected package libubootenv0.1:amd64.
(Reading database ... 191791 files and directories currently installed.)
Preparing to unpack .../libubootenv0.1_0.2-1_
Unpacking libubootenv0.1:amd64 (0.2-1) ...
Selecting previously unselected package libubootenv-tool.
Preparing to unpack .../libubootenv-tool_0.2-1_
Unpacking libubootenv-tool (0.2-1) ...
Selecting previously unselected package u-boot-tools.
Preparing to unpack .../u-boot-tools_2021.01+dfsg-
Unpacking u-boot-tools (2021.01+dfsg-3ubuntu0~20.04.
Selecting previously unselected package device-tree-compiler.
Preparing to unpack .../device-tree-compiler_1.5.
Unpacking device-tree-compiler (1.5.1-1) ...
Setting up libubootenv0.1:amd64 (0.2-1) ...
Setting up device-tree-compiler (1.5.1-1) ...
Setting up u-boot-tools (2021.01+dfsg-3ubuntu0~20.04.
Setting up libubootenv-tool (0.2-1) ...
Processing triggers for man-db (2.9.1-1) ...
Processing triggers for libc-bin (2.31-0ubuntu9.2) ...
W: --force-yes is deprecated, use one of the options starting with
--allow instead.
Reading package lists... Done
Building dependency tree
Reading state information... Done
Package gksu is not available, but is referred to by another package.
This may mean that the package is missing, has been obsoleted, or
is only available from another source
W: --force-yes is deprecated, use one of the options starting with
--allow instead.
E: Package 'gksu' has no installation candidate
==> could not install gksu!
--------------------
NOTE: After several try unable to install gksu
---------------------
systemwork@ansuman-SYSTEMWORK:
Reading package lists... Done
Building dependency tree
Reading state information... Done
dpkg-dev is already the newest version (1.19.7ubuntu3).
dpkg-dev set to manually installed.
build-essential is already the newest version (12.8ubuntu1.1).
build-essential set to manually installed.
The following additional packages will be installed:
autoconf automake autopoint autotools-dev dh-autoreconf
dh-strip-nondeterminism dwz gettext intltool-debian
libarchive-cpio-perl libarchive-zip-perl libcroco3 libdebhelper-perl
libfile-stripnondeterminism-
libltdl-dev libmail-sendmail-perl libsigsegv2 libsub-override-perl
libsys-hostname-long-perl libtool m4
po-debconf
Suggested packages:
autoconf-archive gnu-standards autoconf-doc dh-make gettext-doc
libasprintf-dev libgettextpo-dev libtool-doc
gfortran | fortran95-compiler gcj-jdk m4-doc libmail-box-perl
The following NEW packages will be installed:
autoconf automake autopoint autotools-dev debhelper dh-autoreconf
dh-strip-nondeterminism dwz gettext
intltool-debian libarchive-cpio-perl libarchive-zip-perl libcroco3
libdebhelper-perl
libfile-stripnondeterminism-
libsigsegv2 libsub-override-perl
libsys-hostname-long-perl libtool m4 po-debconf
0 upgraded, 23 newly installed, 0 to remove and 5 not upgraded.
Need to get 4,338 kB of archives.
After this operation, 14.4 MB of additional disk space will be used.
Do you want to continue? [Y/n] y
Get:1 http://in.archive.ubuntu.com/
Get:2 http://in.archive.ubuntu.com/
Get:3 http://in.archive.ubuntu.com/
Get:4 http://in.archive.ubuntu.com/
Get:5 http://in.archive.ubuntu.com/
Get:6 http://in.archive.ubuntu.com/
Get:7 http://in.archive.ubuntu.com/
Get:8 http://in.archive.ubuntu.com/
Get:9 http://in.archive.ubuntu.com/
Get:10 http://in.archive.ubuntu.com/
Get:11 http://in.archive.ubuntu.com/
Get:12 http://in.archive.ubuntu.com/
Get:13 http://in.archive.ubuntu.com/
Get:14 http://in.archive.ubuntu.com/
Get:15 http://in.archive.ubuntu.com/
Get:16 http://in.archive.ubuntu.com/
Get:17 http://in.archive.ubuntu.com/
Get:18 http://in.archive.ubuntu.com/
Get:19 http://in.archive.ubuntu.com/
Get:20 http://in.archive.ubuntu.com/
Get:21 http://in.archive.ubuntu.com/
Get:22 http://in.archive.ubuntu.com/
Get:23 http://in.archive.ubuntu.com/
Fetched 4,338 kB in 1s (3,806 kB/s) Selecting previously unselected package libsigsegv2:amd64.
(Reading database ... 191853 files and directories currently installed.)
Preparing to unpack .../00-libsigsegv2_2.12-2_
Unpacking libsigsegv2:amd64 (2.12-2) ...
Selecting previously unselected package m4.
Preparing to unpack .../01-m4_1.4.18-4_amd64.deb ...
Unpacking m4 (1.4.18-4) ...
Selecting previously unselected package autoconf.
Preparing to unpack .../02-autoconf_2.69-11.1_all.
Unpacking autoconf (2.69-11.1) ...
Selecting previously unselected package autotools-dev.
Preparing to unpack .../03-autotools-dev_20180224.
Unpacking autotools-dev (20180224.1) ...
Selecting previously unselected package automake.
Preparing to unpack .../04-automake_1%3a1.16.1-
Unpacking automake (1:1.16.1-4ubuntu6) ...
Selecting previously unselected package autopoint.
Preparing to unpack .../05-autopoint_0.19.8.1-
Unpacking autopoint (0.19.8.1-10build1) ...
Selecting previously unselected package libtool.
Preparing to unpack .../06-libtool_2.4.6-14_all.
Unpacking libtool (2.4.6-14) ...
Selecting previously unselected package dh-autoreconf.
Preparing to unpack .../07-dh-autoreconf_19_all.
Unpacking dh-autoreconf (19) ...
Selecting previously unselected package libdebhelper-perl.
Preparing to unpack .../08-libdebhelper-perl_12.
Unpacking libdebhelper-perl (12.10ubuntu1) ...
Selecting previously unselected package libarchive-zip-perl.
Preparing to unpack .../09-libarchive-zip-perl_1.
Unpacking libarchive-zip-perl (1.67-2) ...
Selecting previously unselected package libsub-override-perl.
Preparing to unpack .../10-libsub-override-perl_0.
Unpacking libsub-override-perl (0.09-2) ...
Selecting previously unselected package libfile-stripnondeterminism-
Preparing to unpack .../11-libfile-
Unpacking libfile-stripnondeterminism-
Selecting previously unselected package dh-strip-nondeterminism.
Preparing to unpack .../12-dh-strip-
Unpacking dh-strip-nondeterminism (1.7.0-1) ...
Selecting previously unselected package dwz.
Preparing to unpack .../13-dwz_0.13-5_amd64.deb ...
Unpacking dwz (0.13-5) ...
Selecting previously unselected package libcroco3:amd64.
Preparing to unpack .../14-libcroco3_0.6.13-1_
Unpacking libcroco3:amd64 (0.6.13-1) ...
Selecting previously unselected package gettext.
Preparing to unpack .../15-gettext_0.19.8.1-
Unpacking gettext (0.19.8.1-10build1) ...
Selecting previously unselected package intltool-debian.
Preparing to unpack .../16-intltool-debian_0.35.0+
Unpacking intltool-debian (0.35.0+20060710.5) ...
Selecting previously unselected package po-debconf.
Preparing to unpack .../17-po-debconf_1.0.21_all.
Unpacking po-debconf (1.0.21) ...
Selecting previously unselected package debhelper.
Preparing to unpack .../18-debhelper_12.10ubuntu1_
Unpacking debhelper (12.10ubuntu1) ...
Selecting previously unselected package libarchive-cpio-perl.
Preparing to unpack .../19-libarchive-cpio-perl_0.
Unpacking libarchive-cpio-perl (0.10-1) ...
Selecting previously unselected package libltdl-dev:amd64.
Preparing to unpack .../20-libltdl-dev_2.4.6-14_
Unpacking libltdl-dev:amd64 (2.4.6-14) ...
Selecting previously unselected package libsys-hostname-long-perl.
Preparing to unpack .../21-libsys-hostname-long-
Unpacking libsys-hostname-long-perl (1.5-1) ...
Selecting previously unselected package libmail-sendmail-perl.
Preparing to unpack .../22-libmail-sendmail-perl_
Unpacking libmail-sendmail-perl (0.80-1) ...
Setting up libarchive-zip-perl (1.67-2) ...
Setting up libdebhelper-perl (12.10ubuntu1) ...
Setting up autotools-dev (20180224.1) ...
Setting up libsigsegv2:amd64 (2.12-2) ...
Setting up autopoint (0.19.8.1-10build1) ...
Setting up libcroco3:amd64 (0.6.13-1) ...
Setting up dwz (0.13-5) ...
Setting up libarchive-cpio-perl (0.10-1) ...
Setting up libsub-override-perl (0.09-2) ...
Setting up libsys-hostname-long-perl (1.5-1) ...
Setting up libfile-stripnondeterminism-
Setting up gettext (0.19.8.1-10build1) ...
Setting up libtool (2.4.6-14) ...
Setting up m4 (1.4.18-4) ...
Setting up intltool-debian (0.35.0+20060710.5) ...
Setting up libmail-sendmail-perl (0.80-1) ...
Setting up autoconf (2.69-11.1) ...
Setting up dh-strip-nondeterminism (1.7.0-1) ...
Setting up automake (1:1.16.1-4ubuntu6) ...
update-alternatives: using /usr/bin/automake-1.16 to provide
/usr/bin/automake (automake) in auto mode
Setting up po-debconf (1.0.21) ...
Setting up libltdl-dev:amd64 (2.4.6-14) ...
Setting up dh-autoreconf (19) ...
Setting up debhelper (12.10ubuntu1) ...
Processing triggers for man-db (2.9.1-1) ...
Processing triggers for install-info (6.7.0.dfsg.2-5) ...
Processing triggers for libc-bin (2.31-0ubuntu9.2) ...
systemwork@ansuman-SYSTEMWORK:
Reading package lists... Done
Building dependency tree
Reading state information... Done
Package gksu is not available, but is referred to by another package.
This may mean that the package is missing, has been obsoleted, or
is only available from another source
E: Package 'gksu' has no installation candidate
systemwork@ansuman-SYSTEMWORK:
Reading package lists... Done
E: You must put some 'deb-src' URIs in your sources.list
systemwork@ansuman-SYSTEMWORK:
> deb http://archive.ubuntu.com/
> deb-src http://archive.ubuntu.com/
> EOF
deb http://archive.ubuntu.com/
deb-src http://archive.ubuntu.com/
systemwork@ansuman-SYSTEMWORK:
Hit:1 http://in.archive.ubuntu.com/
Hit:2 http://in.archive.ubuntu.com/
Hit:3 http://in.archive.ubuntu.com/
Ign:4 http://archive.ubuntu.com/
Get:5 http://security.ubuntu.com/
Err:6 http://archive.ubuntu.com/
Get:7 http://security.ubuntu.com/
Get:8 http://security.ubuntu.com/
Get:9 http://security.ubuntu.com/
Get:10 http://security.ubuntu.com/
Get:11 http://security.ubuntu.com/
Reading package lists... Done
E: The repository 'http://archive.ubuntu.com/
N: Updating from such a repository can't be done securely, and is therefore disabled by default.
N: See apt-secure(8) manpage for repository creation and user configuration details.
systemwork@ansuman-SYSTEMWORK:
Hit:1 http://in.archive.ubuntu.com/
Hit:2 http://in.archive.ubuntu.com/
Hit:3 http://in.archive.ubuntu.com/
Ign:4 http://archive.ubuntu.com/
Get:5 http://security.ubuntu.com/
Err:6 http://archive.ubuntu.com/
404 Not Found [IP: 91.189.88.142 80]
Get:7 http://security.ubuntu.com/
DEP-11 Metadata [27.6 kB]
Get:8 http://security.ubuntu.com/
c-n-f Metadata [8,688 B]
Get:9 http://security.ubuntu.com/
DEP-11 Metadata [61.0 kB]
Get:10 http://security.ubuntu.com/
c-n-f Metadata [12.4 kB]
Get:11 http://security.ubuntu.com/
amd64 DEP-11 Metadata [2,468 B]
Reading package lists... Done
E: The repository 'http://archive.ubuntu.com/
does not have a Release file.
N: Updating from such a repository can't be done securely, and is
therefore disabled by default.
N: See apt-secure(8) manpage for repository creation and user
configuration details.
systemwork@ansuman-SYSTEMWORK:
systemwork@ansuman-SYSTEMWORK:
adb-devprobe.sh fel-sdboot.S nand-common.h script_fex.c
autoversion.sh fel-spiflash.c nand-image-builder.c script_fex.h
bin fel-spiflash.h nand-part-a10.h script.h
boot_head.lds fexc.c nand-part-a20.h script_uboot.c
boot_head.S fexc.h nand-part.c script_uboot.h
bootinfo.c find-arm-gcc.sh nand-part-main.c soc_info.c
common.h fit_image.c phoenix_info.c soc_info.h
fel.c fit_image.h pio.c tests
fel-gpio include progress.c thunks
fel_lib.c jtag-loop.c progress.h uart0-helloworld-sdboot.c
fel_lib.h jtag-loop.lds README.md uart0-helloworld-sdboot.lds
fel-remotefunc-compiler.rb jtag-loop.S script_bin.c version.h
fel-remotefunc-spi-data-
fel-remotefunc-spi-data-
fel-sdboot.lds meminfo.c script_extractor.c
systemwork@ansuman-SYSTEMWORK:
cc -std=c99 -Wall -Wextra -Wno-unused-result -D_POSIX_C_SOURCE=200112L
-D_BSD_SOURCE -D_DEFAULT_SOURCE -Iinclude/ -o sunxi-fexc fexc.c
script.c script_uboot.c script_bin.c script_fex.c
cc -std=c99 -Wall -Wextra -Wno-unused-result -D_POSIX_C_SOURCE=200112L
-D_BSD_SOURCE -D_DEFAULT_SOURCE -Iinclude/ -o sunxi-bootinfo
bootinfo.c
cc -std=c99 -Wall -Wextra -Wno-unused-result -D_POSIX_C_SOURCE=200112L
-D_BSD_SOURCE -D_DEFAULT_SOURCE -Iinclude/ `pkg-config --cflags
libusb-1.0` `pkg-config --cflags zlib` -o sunxi-fel \
fel.c fit_image.c progress.c soc_info.c fel_lib.c fel-spiflash.c
`pkg-config --libs libusb-1.0` `pkg-config --libs zlib` -lfdt
cc -std=c99 -Wall -Wextra -Wno-unused-result -D_POSIX_C_SOURCE=200112L
-D_BSD_SOURCE -D_DEFAULT_SOURCE -Iinclude/ -c -o nand-part-main.o
nand-part-main.c
cc -std=c99 -Wall -Wextra -Wno-unused-result -D_POSIX_C_SOURCE=200112L
-D_BSD_SOURCE -D_DEFAULT_SOURCE -Iinclude/ -c -o nand-part-a10.o
nand-part.c -D A10
nand-part.c: In function ‘_get_mbr’:
nand-part.c:93:4: warning: ‘strncpy’ output truncated before
terminating nul copying 8 bytes from a string of the same length
[-Wstringop-truncation]
93 | strncpy((char *)mbr->magic, MBR_MAGIC, 8);
| ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
cc -std=c99 -Wall -Wextra -Wno-unused-result -D_POSIX_C_SOURCE=200112L
-D_BSD_SOURCE -D_DEFAULT_SOURCE -Iinclude/ -c -o nand-part-a20.o
nand-part.c -D A20
nand-part.c: In function ‘_get_mbr’:
nand-part.c:93:4: warning: ‘strncpy’ output truncated before
terminating nul copying 8 bytes from a string of the same length
[-Wstringop-truncation]
93 | strncpy((char *)mbr->magic, MBR_MAGIC, 8);
| ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
cc -o sunxi-nand-part nand-part-main.o nand-part-a10.o nand-part-a20.o
cc -std=c99 -Wall -Wextra -Wno-unused-result -D_POSIX_C_SOURCE=200112L
-D_BSD_SOURCE -D_DEFAULT_SOURCE -Iinclude/ -o sunxi-pio pio.c
ln -nsf sunxi-fexc bin2fex
ln -nsf sunxi-fexc fex2bin
-----------------------------------------------------------------------------------------------------------------------
Real work started
----------------------------------------------------------------------------------------------------------------------
systemwork@ansuman-SYSTEMWORK:
[sudo] password for systemwork:
Reading package lists... Done
Building dependency tree
Reading state information... Done
Recommended packages:
u-boot-sunxi:armhf
The following NEW packages will be installed:
sunxi-tools
0 upgraded, 1 newly installed, 0 to remove and 5 not upgraded.
Need to get 47.4 kB of archives.
After this operation, 171 kB of additional disk space will be used.
Get:1 http://in.archive.ubuntu.com/
sunxi-tools amd64 1.4.2+git20181114.6d598a-3 [47.4 kB]
Fetched 47.4 kB in 1s (84.9 kB/s)
Selecting previously unselected package sunxi-tools.
(Reading database ... 193098 files and directories currently installed.)
Preparing to unpack .../sunxi-tools_1.4.2+
Unpacking sunxi-tools (1.4.2+git20181114.6d598a-3) ...
Setting up sunxi-tools (1.4.2+git20181114.6d598a-3) ...
systemwork@ansuman-SYSTEMWORK:
AWUSBFEX soc=00001625(A13) 00000001 ver=0001 44 08 scratchpad=00007e00
00000000 00000000
systemwork@ansuman-SYSTEMWORK:
Bus 003 Device 013: ID 1f3a:efe8 Onda (unverified) V972 tablet in flashing mode
systemwork@ansuman-SYSTEMWORK:
Desktop Documents Downloads Music Pictures Public sunxi-tools
Templates Videos working-CHIP-tools
systemwork@ansuman-SYSTEMWORK:
systemwork@ansuman-SYSTEMWORK:
./chip-update-firmware.sh
sudo: ./chip-update-firmware.sh: command not found
systemwork@ansuman-SYSTEMWORK:
bash: ./chip-update-firmware.sh: Permission denied
systemwork@ansuman-SYSTEMWORK:
./chip-update-firmware.sh
Error: Unable to locate sunxi-nand-image-builder utility.
Install sunxi-nand-image-builder with:
CHIP-SDK setup script [https://github.com/nicmorais/
systemwork@ansuman-SYSTEMWORK:
systemwork@ansuman-SYSTEMWORK:
Reading package lists... Done
Building dependency tree
Reading state information... Done
E: Unable to locate package sunxi-nand-image-builder
systemwork@ansuman-SYSTEMWORK:
E: Could not open lock file /var/lib/dpkg/lock-frontend - open (13:
Permission denied)
E: Unable to acquire the dpkg frontend lock
(/var/lib/dpkg/lock-frontend), are you root?
systemwork@ansuman-SYSTEMWORK:
Reading package lists... Done
Building dependency tree
Reading state information... Done
sunxi-tools is already the newest version (1.4.2+git20181114.6d598a-3).
0 upgraded, 0 newly installed, 0 to remove and 5 not upgraded.
systemwork@ansuman-SYSTEMWORK:
systemwork@ansuman-SYSTEMWORK:
install -d /usr/local/bin
+ install -m0755 sunxi-fexc /usr/local/bin/sunxi-fexc
+ install -m0755 sunxi-bootinfo /usr/local/bin/sunxi-bootinfo
+ install -m0755 sunxi-fel /usr/local/bin/sunxi-fel
+ install -m0755 sunxi-nand-part /usr/local/bin/sunxi-nand-part
+ install -m0755 sunxi-pio /usr/local/bin/sunxi-pio
+ ln -nfs sunxi-fexc /usr/local/bin/bin2fex
+ ln -nfs sunxi-fexc /usr/local/bin/fex2bin
systemwork@ansuman-SYSTEMWORK:
cc -std=c99 -Wall -Wextra -Wno-unused-result -D_POSIX_C_SOURCE=200112L
-D_BSD_SOURCE -D_DEFAULT_SOURCE -Iinclude/ -o phoenix_info
phoenix_info.c
cc -std=c99 -Wall -Wextra -Wno-unused-result -D_POSIX_C_SOURCE=200112L
-D_BSD_SOURCE -D_DEFAULT_SOURCE -Iinclude/ -o
sunxi-nand-image-builder nand-image-builder.c
install -d /usr/local/bin
+ install -m0755 phoenix_info /usr/local/bin/phoenix_info
+ install -m0755 sunxi-nand-image-builder
/usr/local/bin/sunxi-nand-
systemwork@ansuman-SYSTEMWORK:
systemwork@ansuman-SYSTEMWORK:
Cloning into 'Flash-CHIP'...
remote: Enumerating objects: 94, done.
remote: Total 94 (delta 0), reused 0 (delta 0), pack-reused 94
Unpacking objects: 100% (94/94), 27.18 KiB | 1.01 MiB/s, done.
systemwork@ansuman-SYSTEMWORK:
Desktop Downloads Music Public Templates working-CHIP-tools
Documents Flash-CHIP Pictures sunxi-tools Videos
systemwork@ansuman-SYSTEMWORK:
systemwork@ansuman-SYSTEMWORK:
systemwork@ansuman-SYSTEMWORK:
# # #
#########
### ###
# {#} #
### '\######
# #
### ###
########
# # #
Welcome to the C.H.I.P Flasher Tool
Please enter your wanted flavour
++++++++++++++++++++++++++++++
enter p for pocketchip Image
enter s for the headless Server Image
enter g for the Desktop Image
enter b for the Buildroot Image
++++++++++++++++++++++++++++++
IMPORTANT INFO
If u suffer from Power Problems add a n
to your choice of flavour
Example: gn for the No-Limit Desktop Image
++++++++++++++++++++++++++++++
Other options
++++++++++++++++++++++++++++++
enter f for Force Clean
++++++++++++++++++++++++++++++
Then press enter please
g
Setting up environment
Hit:1 http://in.archive.ubuntu.com/
Get:2 http://in.archive.ubuntu.com/
kB]
Get:3 http://in.archive.ubuntu.com/
[101 kB]
Get:4 http://in.archive.ubuntu.com/
Packages [1,205 kB]
Get:5 http://security.ubuntu.com/
kB]
Get:6 http://in.archive.ubuntu.com/
Packages [532 kB]
Get:7 http://in.archive.ubuntu.com/
Translation-en [258 kB]
Get:8 http://in.archive.ubuntu.com/
DEP-11 Metadata [282 kB]
Ign:9 http://archive.ubuntu.com/
Get:10 http://in.archive.ubuntu.com/
c-n-f Metadata [14.1 kB]
Get:11 http://in.archive.ubuntu.com/
amd64 Packages [855 kB]
Get:12 http://in.archive.ubuntu.com/
Packages [632 kB]
Get:13 http://in.archive.ubuntu.com/
Translation-en [181 kB]
Get:14 http://in.archive.ubuntu.com/
amd64 DEP-11 Metadata [351 kB]
Err:15 http://archive.ubuntu.com/
404 Not Found [IP: 91.189.88.152 80]
Get:16 http://in.archive.ubuntu.com/
amd64 c-n-f Metadata [18.8 kB]
Get:17 http://in.archive.ubuntu.com/
amd64 DEP-11 Metadata [944 B]
Get:18 http://in.archive.ubuntu.com/
amd64 DEP-11 Metadata [10.3 kB]
Reading package lists... Done
E: The repository 'http://archive.ubuntu.com/
does not have a Release file.
N: Updating from such a repository can't be done securely, and is
therefore disabled by default.
N: See apt-secure(8) manpage for repository creation and user
configuration details.
Reading package lists... Done
Building dependency tree
Reading state information... Done
wget is already the newest version (1.20.3-1ubuntu1).
wget set to manually installed.
adb is already the newest version (1:8.1.0+r23-5ubuntu2).
adb set to manually installed.
android-tools-fastboot is already the newest version (1:8.1.0+r23-5ubuntu2).
fastboot is already the newest version (1:8.1.0+r23-5ubuntu2).
fastboot set to manually installed.
sunxi-tools is already the newest version (1.4.2+git20181114.6d598a-3).
curl is already the newest version (7.68.0-1ubuntu2.6).
git is already the newest version (1:2.25.1-1ubuntu3.1).
u-boot-tools is already the newest version (2021.01+dfsg-3ubuntu0~20.04.
0 upgraded, 0 newly installed, 0 to remove and 5 not upgraded.
Adding current user to dialout group
Adding current user to plugdev group
Adding udev rule for Allwinner device
SUBSYSTEM=="usb", ATTRS{idVendor}=="1f3a", ATTRS{idProduct}=="efe8",
GROUP="plugdev", MODE="0660" SYMLINK+="usb-chip"
SUBSYSTEM=="usb", ATTRS{idVendor}=="18d1", ATTRS{idProduct}=="1010",
GROUP="plugdev", MODE="0660" SYMLINK+="usb-chip-fastboot"
SUBSYSTEM=="usb", ATTRS{idVendor}=="1f3a", ATTRS{idProduct}=="1010",
GROUP="plugdev", MODE="0660" SYMLINK+="usb-chip-fastboot"
SUBSYSTEM=="usb", ATTRS{idVendor}=="067b", ATTRS{idProduct}=="2303",
GROUP="plugdev", MODE="0660" SYMLINK+="usb-serial-adapter"
Installing CHIP-tools
Cloning into 'CHIP-tools'...
remote: Enumerating objects: 554, done.
remote: Total 554 (delta 0), reused 0 (delta 0), pack-reused 554
Receiving objects: 100% (554/554), 129.52 KiB | 157.00 KiB/s, done.
Resolving deltas: 100% (324/324), done.
== Gui selected ==
== preparing images ==
== New image available ==
== Downloading.. ==
--2021-09-08 21:26:29--
http://chip.jfpossibilities.
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.
HTTP request sent, awaiting response... 200 OK
Length: 278528 (272K) [application/octet-stream]
Saving to: ‘spl-40000-1000-100.bin’
spl-40000-1000-100.bin
100%[=========================
246KB/s in 1.1s
2021-09-08 21:26:31 (246 KB/s) - ‘spl-40000-1000-100.bin’ saved [278528/278528]
--2021-09-08 21:26:31--
http://chip.jfpossibilities.
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.
HTTP request sent, awaiting response... 200 OK
Length: 4521984 (4.3M) [application/octet-stream]
Saving to: ‘spl-400000-4000-500.bin’
spl-400000-4000-500.bin
100%[=========================
1.55MB/s in 2.8s
2021-09-08 21:26:34 (1.55 MB/s) - ‘spl-400000-4000-500.bin’ saved
[4521984/4521984]
--2021-09-08 21:26:34--
http://chip.jfpossibilities.
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.
HTTP request sent, awaiting response... 200 OK
Length: 4620288 (4.4M) [application/octet-stream]
Saving to: ‘spl-400000-4000-680.bin’
spl-400000-4000-680.bin
100%[=========================
470KB/s in 15s
2021-09-08 21:26:50 (295 KB/s) - ‘spl-400000-4000-680.bin’ saved
[4620288/4620288]
--2021-09-08 21:26:50--
http://chip.jfpossibilities.
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.
HTTP request sent, awaiting response... 200 OK
Length: 16384 (16K) [application/octet-stream]
Saving to: ‘sunxi-spl.bin’
sunxi-spl.bin
100%[=========================
57.0KB/s in 0.3s
2021-09-08 21:26:51 (57.0 KB/s) - ‘sunxi-spl.bin’ saved [16384/16384]
--2021-09-08 21:26:51--
http://chip.jfpossibilities.
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.
HTTP request sent, awaiting response... 200 OK
Length: 625858 (611K) [application/octet-stream]
Saving to: ‘u-boot-dtb.bin’
u-boot-dtb.bin
100%[=========================
432KB/s in 1.4s
2021-09-08 21:26:53 (432 KB/s) - ‘u-boot-dtb.bin’ saved [625858/625858]
--2021-09-08 21:26:53--
http://chip.jfpossibilities.
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.
HTTP request sent, awaiting response... 200 OK
Length: 786432 (768K) [application/octet-stream]
Saving to: ‘uboot-40000.bin’
uboot-40000.bin
100%[=========================
143KB/s in 5.4s
2021-09-08 21:26:59 (143 KB/s) - ‘uboot-40000.bin’ saved [786432/786432]
--2021-09-08 21:26:59--
http://chip.jfpossibilities.
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.
HTTP request sent, awaiting response... 200 OK
Length: 4194304 (4.0M) [application/octet-stream]
Saving to: ‘uboot-400000.bin’
uboot-400000.bin
100%[=========================
342KB/s in 11s
2021-09-08 21:27:11 (364 KB/s) - ‘uboot-400000.bin’ saved [4194304/4194304]
== Staging for NAND probe ==
Image Name: detect NAND
Created: Wed Sep 8 21:27:11 2021
Image Type: ARM Linux Script (uncompressed)
Data Size: 97 Bytes = 0.09 KiB = 0.00 MiB
Load Address: 00000000
Entry Point: 00000000
Contents:
Image 0: 89 Bytes = 0.09 KiB = 0.00 MiB
waiting for fel...OK
waiting for fel.....OK
NAND detected:
nand_erasesize=400000
nand_oobsize=680
nand_writesize=4000
== Downloading new UBI, this will be cached for future flashes. ==
--2021-09-08 21:27:28--
http://chip.jfpossibilities.
Resolving chip.jfpossibilities.com (chip.jfpossibilities.com)...
23.239.1.46, 2600:3c01::f03c:91ff:fe08:29a3
Connecting to chip.jfpossibilities.com
(chip.jfpossibilities.com)|23.
HTTP request sent, awaiting response... 200 OK
Length: 687865896 (656M)
Saving to: ‘chip-400000-4000-680.ubi.
chip-400000-4000-680.ubi.spa
100%[=========================
462KB/s in 33m 43s
2021-09-08 22:01:12 (332 KB/s) - ‘chip-400000-4000-680.ubi.
saved [687865896/687865896]
Image Name: flash gui
Created: Wed Sep 8 22:01:12 2021
Image Type: ARM Linux Script (uncompressed)
Data Size: 1784 Bytes = 1.74 KiB = 0.00 MiB
Load Address: 00000000
Entry Point: 00000000
Contents:
Image 0: 1776 Bytes = 1.73 KiB = 0.00 MiB
waiting for fel...[sudo] password for systemwork:
OK
waiting for fastboot......................
target reported max download size of 33554432 bytes
sending sparse 'UBI' 1/24 (28672 KB)...
OKAY [ 2.013s]
writing 'UBI' 1/24...
OKAY [ 2.101s]
sending sparse 'UBI' 2/24 (28672 KB)...
OKAY [ 2.015s]
writing 'UBI' 2/24...
OKAY [ 5.571s]
sending sparse 'UBI' 3/24 (28672 KB)...
OKAY [ 2.005s]
writing 'UBI' 3/24...
OKAY [ 12.535s]
sending sparse 'UBI' 4/24 (28672 KB)...
OKAY [ 1.996s]
writing 'UBI' 4/24...
OKAY [ 12.535s]
sending sparse 'UBI' 5/24 (28672 KB)...
OKAY [ 1.953s]
writing 'UBI' 5/24...
OKAY [ 12.525s]
sending sparse 'UBI' 6/24 (28672 KB)...
OKAY [ 2.001s]
writing 'UBI' 6/24...
OKAY [ 12.537s]
sending sparse 'UBI' 7/24 (28672 KB)...
OKAY [ 1.997s]
writing 'UBI' 7/24...
OKAY [ 12.527s]
sending sparse 'UBI' 8/24 (28672 KB)...
OKAY [ 1.951s]
writing 'UBI' 8/24...
OKAY [ 12.539s]
sending sparse 'UBI' 9/24 (28672 KB)...
OKAY [ 1.992s]
writing 'UBI' 9/24...
OKAY [ 12.532s]
sending sparse 'UBI' 10/24 (28672 KB)...
OKAY [ 1.970s]
writing 'UBI' 10/24...
OKAY [ 12.525s]
sending sparse 'UBI' 11/24 (28672 KB)...
OKAY [ 1.997s]
writing 'UBI' 11/24...
OKAY [ 12.536s]
sending sparse 'UBI' 12/24 (28672 KB)...
OKAY [ 2.018s]
writing 'UBI' 12/24...
OKAY [ 12.537s]
sending sparse 'UBI' 13/24 (28672 KB)...
OKAY [ 2.012s]
writing 'UBI' 13/24...
OKAY [ 12.535s]
sending sparse 'UBI' 14/24 (28672 KB)...
OKAY [ 1.977s]
writing 'UBI' 14/24...
OKAY [ 12.531s]
sending sparse 'UBI' 15/24 (28672 KB)...
OKAY [ 1.973s]
writing 'UBI' 15/24...
OKAY [ 12.528s]
sending sparse 'UBI' 16/24 (28672 KB)...
OKAY [ 1.989s]
writing 'UBI' 16/24...
OKAY [ 12.527s]
sending sparse 'UBI' 17/24 (28672 KB)...
OKAY [ 2.008s]
writing 'UBI' 17/24...
OKAY [ 12.528s]
sending sparse 'UBI' 18/24 (28672 KB)...
OKAY [ 1.974s]
writing 'UBI' 18/24...
OKAY [ 12.525s]
sending sparse 'UBI' 19/24 (28672 KB)...
OKAY [ 2.013s]
writing 'UBI' 19/24...
OKAY [ 12.530s]
sending sparse 'UBI' 20/24 (28672 KB)...
OKAY [ 1.987s]
writing 'UBI' 20/24...
OKAY [ 12.532s]
sending sparse 'UBI' 21/24 (28672 KB)...
OKAY [ 1.974s]
writing 'UBI' 21/24...
OKAY [ 12.523s]
sending sparse 'UBI' 22/24 (28672 KB)...
OKAY [ 1.998s]
writing 'UBI' 22/24...
OKAY [ 12.532s]
sending sparse 'UBI' 23/24 (28672 KB)...
OKAY [ 2.002s]
writing 'UBI' 23/24...
OKAY [ 9.725s]
sending sparse 'UBI' 24/24 (12288 KB)...
OKAY [ 0.854s]
writing 'UBI' 24/24...
OKAY [ 2.809s]
finished. total time: 317.499s
resuming boot...
OKAY [ 0.000s]
finished. total time: 0.000s
FLASH VERIFICATION COMPLETE.
# # #
#########
### ###
# {#} #
### '%######
# #
### ###
########
# # #
CHIP is ready to roll!
